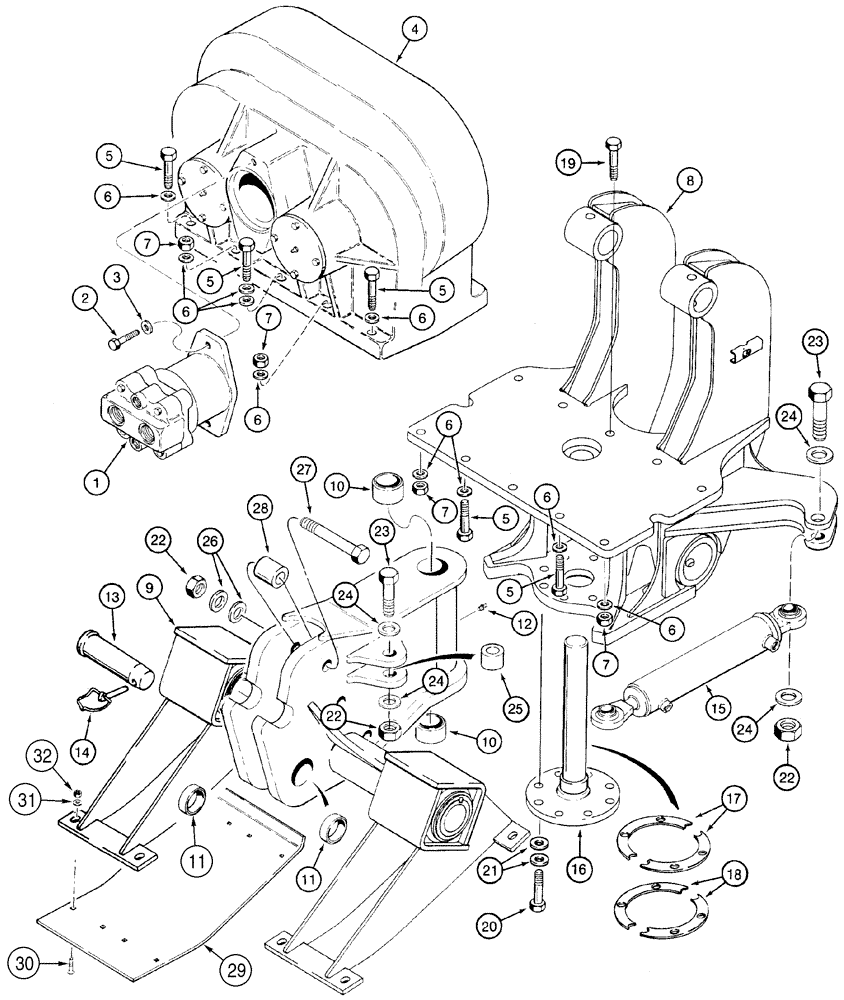

Запчасти Case 960 (09-49) - MOUNTING PLOW MOTOR, GEARBOX AND BLADE (09) - CHASSIS

1

H673911

HYDRAULIC MOTOR

Plow, See Page(s) 8-199

1шт.

2

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

3

H274894

WASHER

2шт.

4

H674911

BOX

Plow Shaker, See Page(s) 9-173

1шт.

5

426-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

5/8 x 2-3/4

9шт.

6

H426809

SPACER

11шт.

7

232-41110

NUT,5/8"-11, GC

10шт.

8

108915A3

FRAME

Gearbox Mounting

1шт.

105966A1

MOUNTING PARTS

Blade Mounting, Consists Of 9 - 11, Also Includes 1 - 4, See Page(s) 9-171

1шт.

9

NSS

NOT SOLD SEPARAT

Bracket

1шт.

10

105870A1

BUSHING

Upper And Lower

2шт.

11

H437099

BUSHING

Sides

2шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

13

H437057

PIN

2шт.

14

D130037

HEADED PIN,8.73mm OD

2шт.

15

111620A2

CYLINDER

64 ID x 203 mm, Plow Blade Steering, See Page(s) 8-187

1шт.

16

104797A2

AXLE

1шт.

17

104799A2

SHIM

1шт.

18

105866A2

SHIM

1шт.

19

426-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

5/8 x 3; 8

1шт.

20

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

5/8 x 1-3/4

8шт.

21

495-11066

WASHER,5/8", SAE

21/32 x 1-5/16 x 3/32

16шт.

22

232-41116

LOCK NUT,1"-8, GC

5шт.

23

413-1660

BOLT,Hex, 1" - 8 x 3-3/4", Gr 5

1 x 3-3/4

2шт.

24

H426833

WASHER

1-1/16 x 1-7/8 x 9/64

4шт.

25

114879A1

SPACER

1шт.

26

H435357

WASHER

3шт.

27

413-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

1 x 6

3шт.

28

H435475

SPACER

3шт.

29

H437946

LARGE PLATE

PLATE, LARGE

2шт.

30

419-2624

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2

8шт.

31

496-21041

WASHER,13/32" x 13/16" x .089", HDN

8шт.

32

232-4116

NUT,3/8"-16, GC

8шт.
