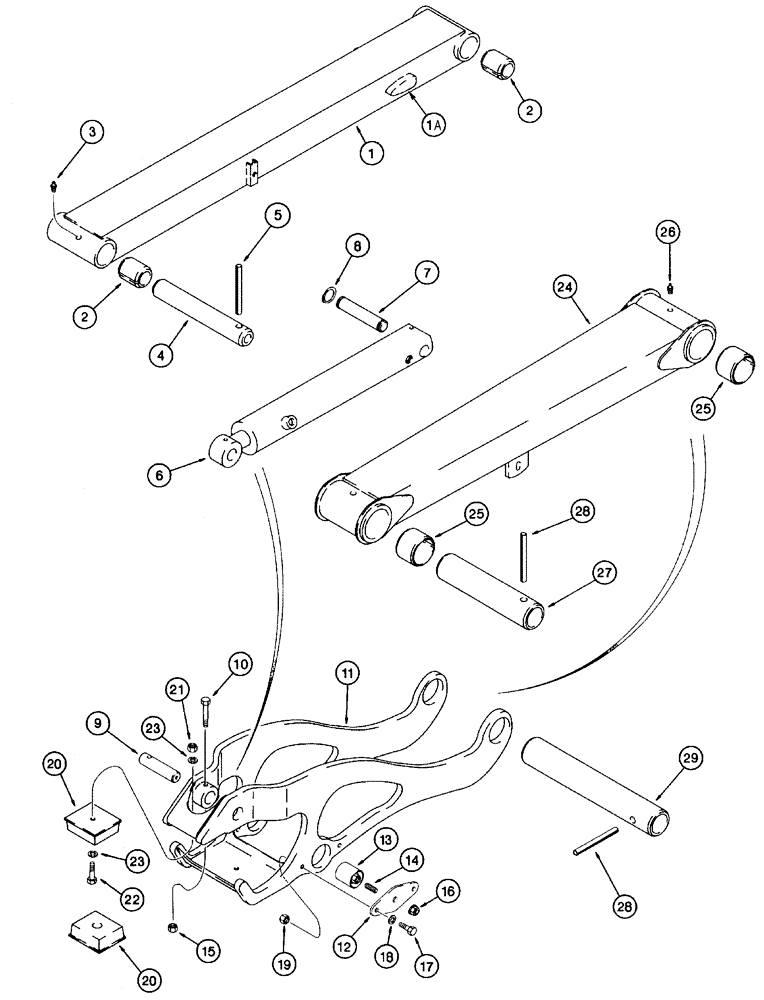

Запчасти Case 960 (09-48) - MOUNTING PLOW LIFT ARMS (09) - CHASSIS

Open Lift Cradle

1шт.

H673808

ARM

Plow Lift, Consists Of 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Arm, Plow Lift, Upper

1шт.

1a

H434929

Transport Lock, Not Serviced Separately

2шт.

2

248445A1

BUSHING

4шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

4

H436862

PIN

2шт.

5

38-34064

PIN,5/8" x 4", Coiled

5/8" x 4", Coiled

2шт.

6

H673790

CYLINDER

89 ID x 461 strk, Plow Lift, See Page(s) 8-183

1шт.

7

H434493

PIN

1шт.

8

103-16125

SNAP RING,#125, Ext

2шт.

9

H436865

PIN

1шт.

10

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

11

116328A1

CRADLE

Open Lift Cradle

1шт.

12

116158A1

LARGE PLATE

PLATE, LARGE

2шт.

13

H438533

ISOLATOR

Round, Rubber

2шт.

14

H438537

STUD

4шт.

15

232-4116

NUT,3/8"-16, GC

1шт.

16

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

17

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

18

496-21041

WASHER,13/32" x 13/16" x .089", HDN

8шт.

19

232-4116

NUT,3/8"-16, GC

4шт.

20

D90990

GUARD

Rubber

2шт.

21

232-4116

NUT,3/8"-16, GC

2шт.

22

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

23

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

H673809

ARM

Plow Lift, Consists Of 24 - 26

1шт.

24

NSS

NOT SOLD SEPARAT

Arm, Plow Lift, Lower

1шт.

25

H434903

BUSHING

4шт.

26

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

27

H436864

PIN

1шт.

28

38-34064

PIN,5/8" x 4", Coiled

5/8" x 4", Coiled

2шт.

29

H436863

PIN

1шт.
