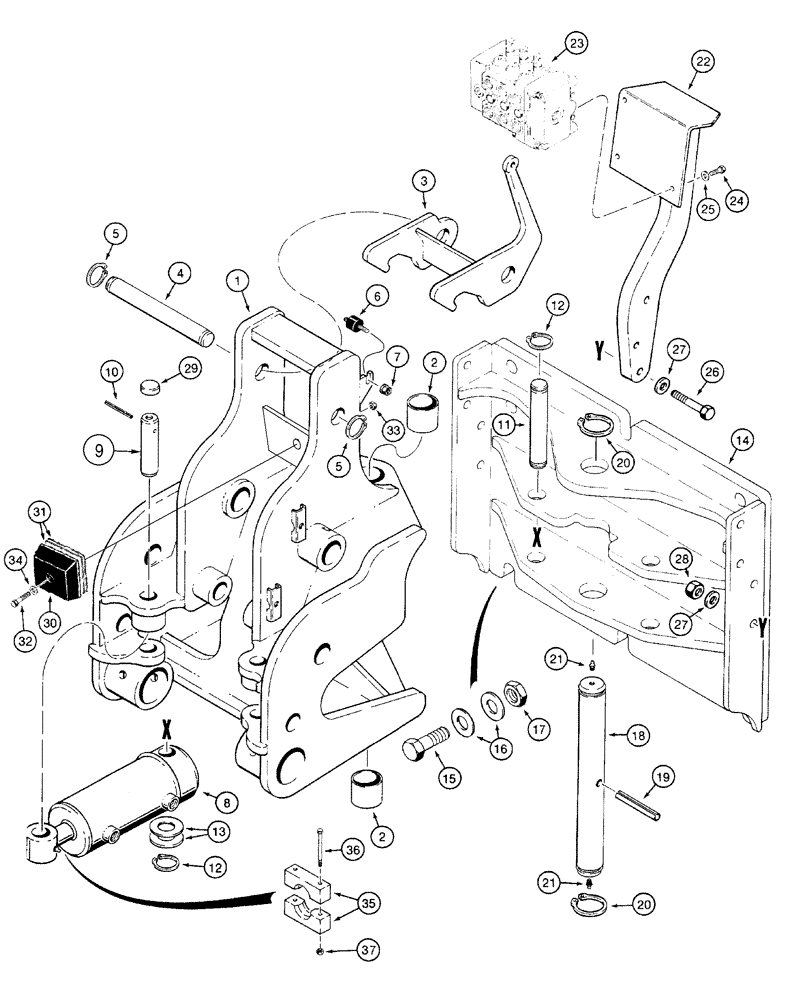

Запчасти Case 960 (09-47) - MOUNTING SWING TOWER, PLOW (09) - CHASSIS

1

H673803

FRAME

Plow

1шт.

2

H433644

BUSHING

2шт.

3

H673804

LATCH

Lift Arm

1шт.

4

H434493

PIN

1шт.

5

103-16125

SNAP RING,#125, Ext

2шт.

6

H359216

MOUNTING PARTS

Latch

1шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

8

H673704

CYLINDER,101.6 mm ID x 327 mm L

102 ID x 152 mm, Plow Swing, See Page(s) 8-185

2шт.

9

H436865

PIN

2шт.

10

38-32440

PIN,3/8" x 2 1/2", Coiled

3/8" x 2 1/2", Coiled

2шт.

11

H434801

PIN

2шт.

12

103-16125

SNAP RING,#125, Ext

4шт.

13

495-81209

WASHER,1.31" ID x 2.5" OD x 0.13" Thk

1-5/16 x 2-1/2 x 5/32

4шт.

14

H673800

PLATE

1шт.

15

413-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 5

1 x 31/2

6шт.

16

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

12шт.

17

232-41116

LOCK NUT,1"-8, GC

6шт.

18

H436866

PIN

1шт.

19

38-34064

PIN,5/8" x 4", Coiled

5/8" x 4", Coiled

1шт.

20

103-16200

SNAP RING,#200, Ext

2шт.

21

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

22

123369A1

PEDESTAL

1шт.

23

130806A1

VALVE

Plow Control, See Page(s) 8-189 - 8-195

1шт.

24

414-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

2шт.

25

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

2шт.

26

426-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

5/8 x 2-3/4

2шт.

27

H426809

SPACER

4шт.

28

232-41110

NUT,5/8"-11, GC

2шт.

29

41-1020

PLUG,Cup, 1 1/4"

1-1/4

2шт.

30

D90990

GUARD

1шт.

31

H438536

SHIM,1.50mm Thk

1шт.

32

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

33

232-4116

NUT,3/8"-16, GC

1шт.

34

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

Used On Quad Units

1шт.

H675015

STOP

Consists Of 35 - 37

1шт.

35

NSS

NOT SOLD SEPARAT

Block

1шт.

36

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

37

232-4116

NUT,3/8"-16, GC

2шт.
