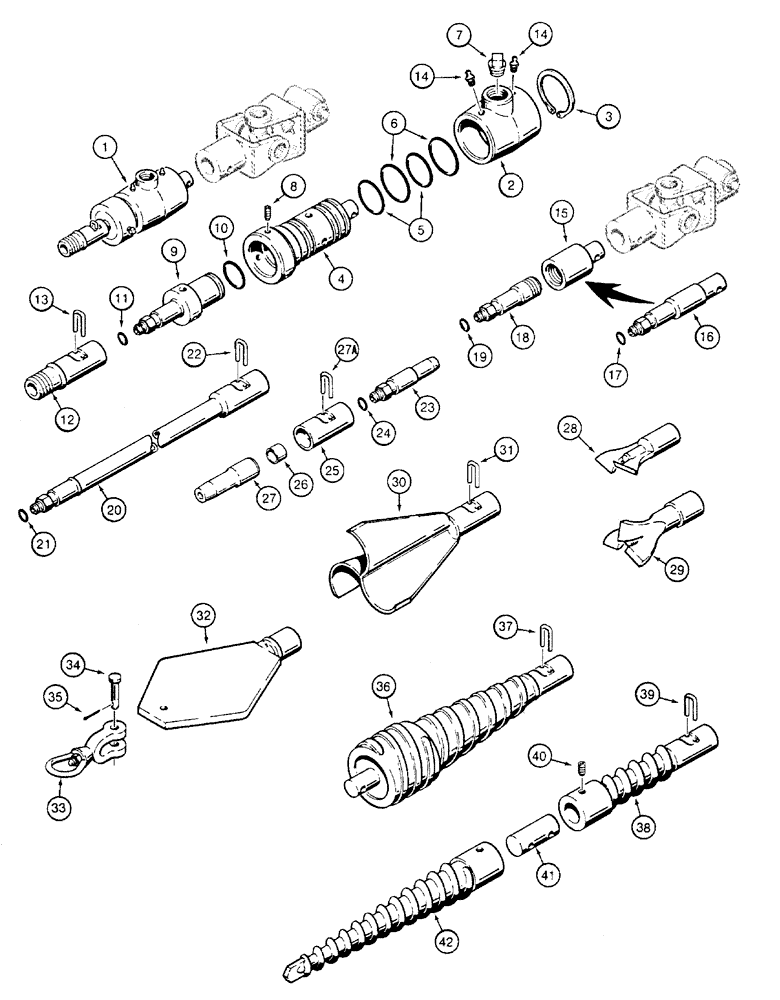

Запчасти Case 960 (09-45) - COUPLER, HYDRA-BORER BORING ATTACHMENTS (09) - CHASSIS

1

H522367

COUPLING

Water, Wet Boring, Attaches To U-Joint On Gearbox, Consists Of 1 - 14

1шт.

2

H84228

RING

1шт.

3

103-11225

SNAP RING,#225, Ext

1шт.

4

H84236

COUPLING

Water

1шт.

5

364108R1

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

2шт.

6

H749317

OIL SEAL

Coupler

2шт.

7

353-207

PLUG,Sq Drive, 3/4"-14 NPT

3/4 PT, Used For Dry Boring, If Used

1шт.

8

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

3шт.

9

H522359

ADAPTER

Quick Lock, Male

1шт.

10

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

1шт.

12

H522375

ADAPTER

Drill Stem

1шт.

13

H94961

STAPLE

1шт.

14

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

2шт.

15

H83352

ADAPTER

Dry Boring

1шт.

16

H646901

ADAPTER

Dry Boring, Quick Lock, Male

1шт.

18

H522383

ADAPTER

1шт.

20

H672563

EXTENSION

5 ft, Drill

1шт.

20

H672562

ADAPTER

10 ft, Drill, Included With 185583A1, See Page(s) 9-155

1шт.

22

H94961

STAPLE

1шт.

23

H434273

NIPPLE, LUBE

NIPPLE , Quick Lock, Male

1шт.

H672594

COUPLING

Quick Lock, Female, Consists Of 25 - 27

1шт.

25

NSS

NOT SOLD SEPARAT

Coupling

1шт.

26

NSS

NOT SOLD SEPARAT

Bushing

1шт.

27

NSS

NOT SOLD SEPARAT

Shaft

1шт.

27a

H94961

STAPLE

1шт.

28

H518837

BIT

2 dia x 1 in PT, Drill, Two Blade

1шт.

28

H518910

BIT

3 dia x 1 in PT, Drill, Two Blade

1шт.

29

H519249

BIT

3 dia x 1 in PT, Drill, Three Blade

1шт.

30

H522441

REAMER

8 in, Back, Quick Lock, Female

1шт.

30

H522466

REAMER

12 in, Back, Quick Lock, Female

1шт.

31

H94961

STAPLE

1шт.

32

H519504

REAMER

4 in, Fish Plate

1шт.

32

H519652

REAMER

6 in, Fish Plate

1шт.

32

H528497

REAMER

8 in, Fish Plate

1шт.

33

H88195

FASTENER

Reamer

1шт.

34

H32284

AXLE PIN

Special

1шт.

35

432-816

COTTER PIN,1/8" x 1"

1шт.

36

H522409

REAMER

3-3/4 in, Compaction, Quick Lock, Female

1шт.

37

H94961

STAPLE

1шт.

38

H522433

BIT

2 in, Compaction, Quick Lock, Female

1шт.

39

H94961

STAPLE

1шт.

40

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

3/8 x 1-3/4

2шт.

41

H85233

COUPLING

Bit

1шт.

42

H84988

BIT

2 in, Compaction, End

1шт.

185583A1

KIT

Hydra-Borer, Consists Of 12, 13, 16, 20, 22, 27A, 28, 31, 37 - 42, Also Includes 11 - 13, See Page(s) 9-145, Also Includes 12, 13, 16, 20, 22, 27A, See Page(s) 9-149, 9-151

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
