(09-44) - HYDRA-BORER FRAME, DRILL STEM LEVEL

Запчасти Case 960 (09-44) - HYDRA-BORER FRAME, DRILL STEM LEVEL (09) - CHASSIS

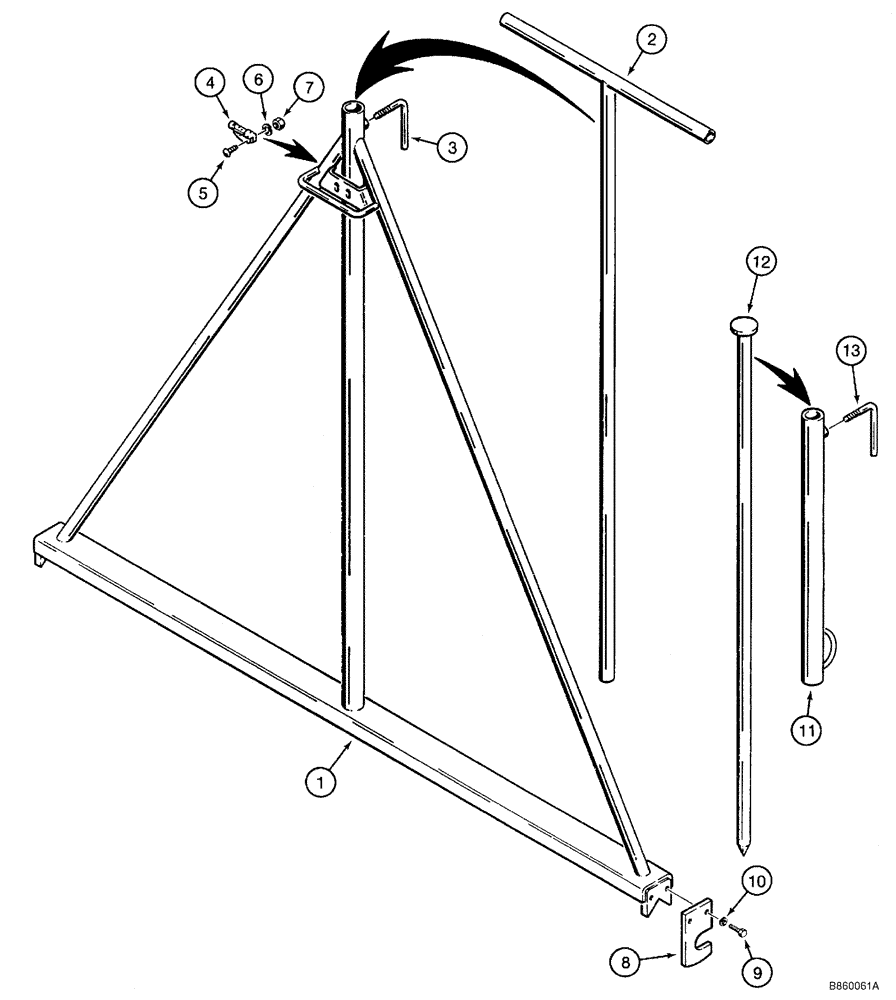

Схема запчастей Case 960 - (09-44) - HYDRA-BORER FRAME, DRILL STEM LEVEL (09) - CHASSIS
13
2
3
4
12
6
8
7
1
10
5
11
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

H521377

STEM

Drill Stem Level

1шт.

2

H521385

HANDLE

Frame

1шт.

3

H71472

TUBE,0.375" OD x 3.25, 2.25" L

Handle Adjustment

1шт.

4

H346015

LEVEL

Level Indicator

1шт.

5

182-8

SCREW

No. 4 x 5/8

2шт.

6

492-11004

LOCK WASHER,#4

2шт.

7

225-14104

NUT,#4-40

2шт.

8

H92544

GUIDE

Drill Stem

2шт.

9

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

10

492-11031

LOCK WASHER,5/16"

4шт.

11

H511139

TUBE

Guide Anchor, Included With 185583A1, See Page(s) 9-155

2шт.

12

H511121

GUIDE

Guide Anchor, Included With 185583A1, See Page(s) 9-155

2шт.

13

H71472

TUBE,0.375" OD x 3.25, 2.25" L

Tube Adjustment, Included With 185583A1, See Page(s) 9-155

2шт.
