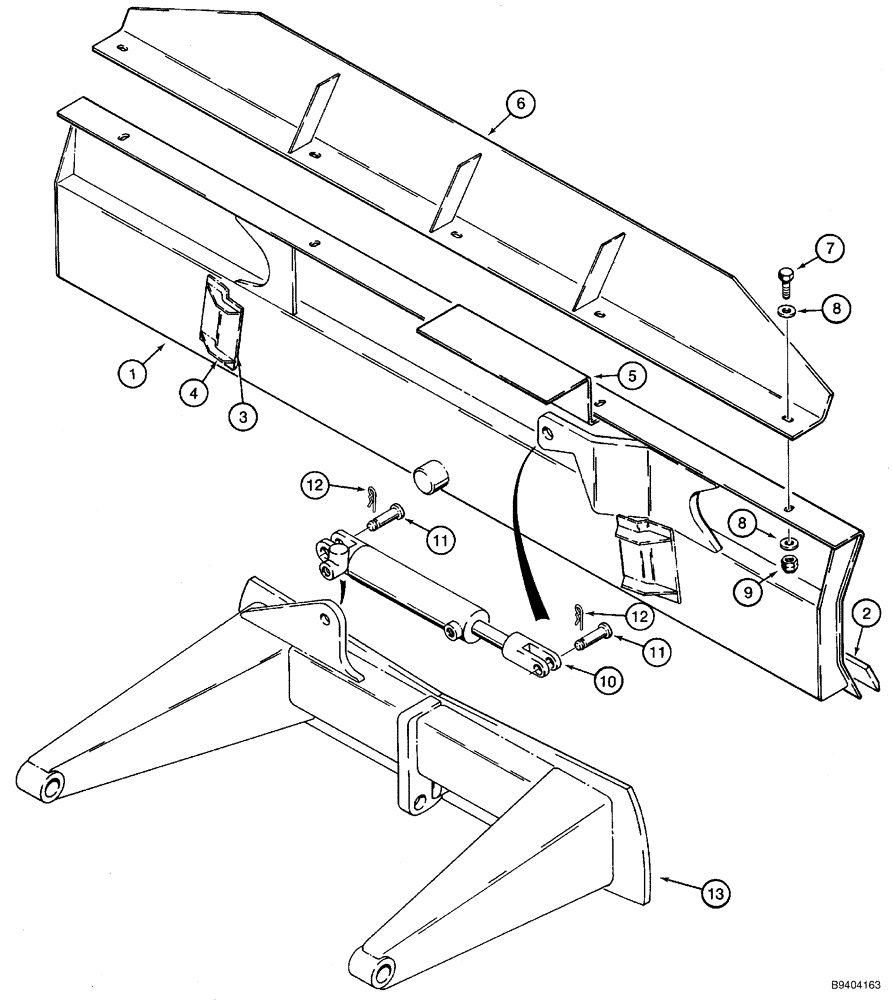

Запчасти Case 960 (09-39) - MOUNTING BACKFILL BLADE (09) - CHASSIS

1

H672093

BLADE

Blade, Backfill, Includes 2 - 4, See Page(s) 9-131

1шт.

2

H435660

EDGE

1шт.

3

H433238

RETAINER

2шт.

4

H433787

GUSSET

4шт.

5

H433775

GUARD

Tilt Cylinder, If Used

1шт.

6

H672319

EXTENSION ASSY.

1шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

5шт.

8

H274894

WASHER

10шт.

9

232-4118

NUT,1/2"-13, GC

5шт.

10

101645A1

CYLINDER

64 ID x 203 strk, Backfill Blade Tilt, Includes 11, 12, See Page(s) 8-117

1шт.

11

102910A1

PIN

2шт.

12

1978738C1

HAIR PIN COTTER

3/16"

2шт.

13

H672097

ARM/LIFTING DEVICE

1шт.
