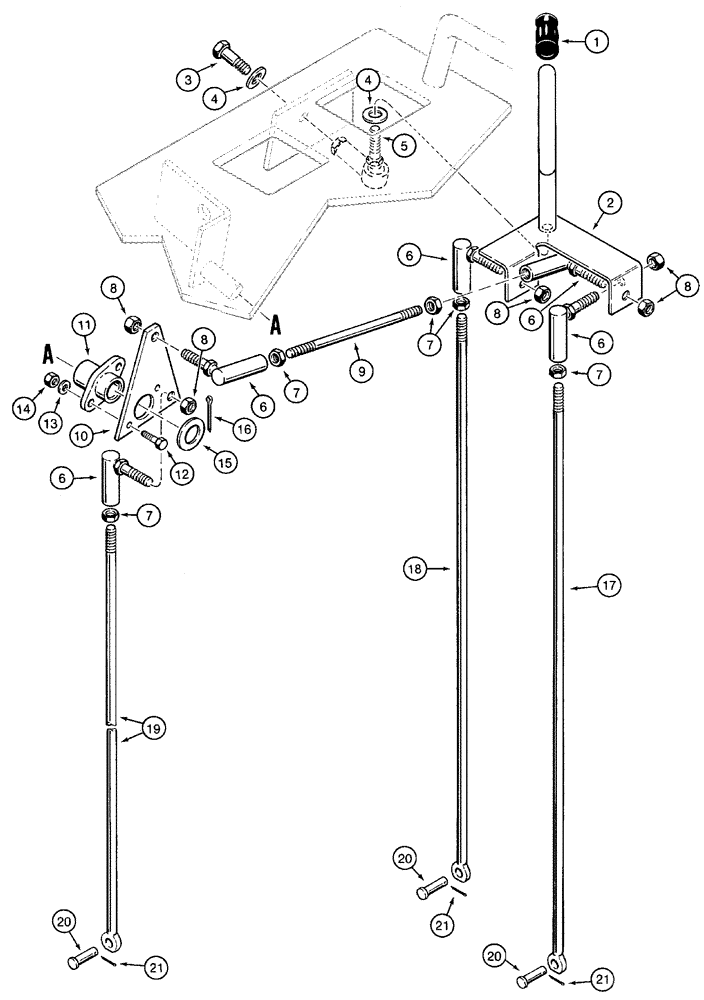

Запчасти Case 960 (09-38) - CONTROLS BACKFILL BLADE (09) - CHASSIS

1

D128268

HANDLE

1шт.

2

H674828

HANDLE

1шт.

3

414-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

1/2 NF x 1-1/4

1шт.

4

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

2шт.

5

L44143

BALL JOINT

Special

1шт.

6

D38296

JOINT

3/8

5шт.

7

425-156

JAM NUT,Jam, 3/8"-24, G5

5шт.

8

232-4616

LOCK NUT,3/8"-24, GC

5шт.

9

H437117

LINK

1шт.

10

H437162

PLATE

1шт.

11

A162299

BEARING,15.95mm ID

Flange

1шт.

12

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

13

H426767

WASHER

Hardened

2шт.

14

230-4214

LOCK NUT,1/4"-20, GA

2шт.

15

495-11066

WASHER,5/8", SAE

21/32 x 1-5/16 x 3/32

1шт.

16

432-820

COTTER PIN,1/8" x 1 1/4"

1шт.

17

382178A2

LINK

570 mm, Tilt

1шт.

18

382177A2

LINK

556 mm, Lift

1шт.

19

382176A2

LINK

526 mm, Angle

1шт.

20

427-4077

CLEVIS PIN,1/4" x .770"

Hardened

3шт.

21

432-48

COTTER PIN,1/16" x 1/2"

3шт.
