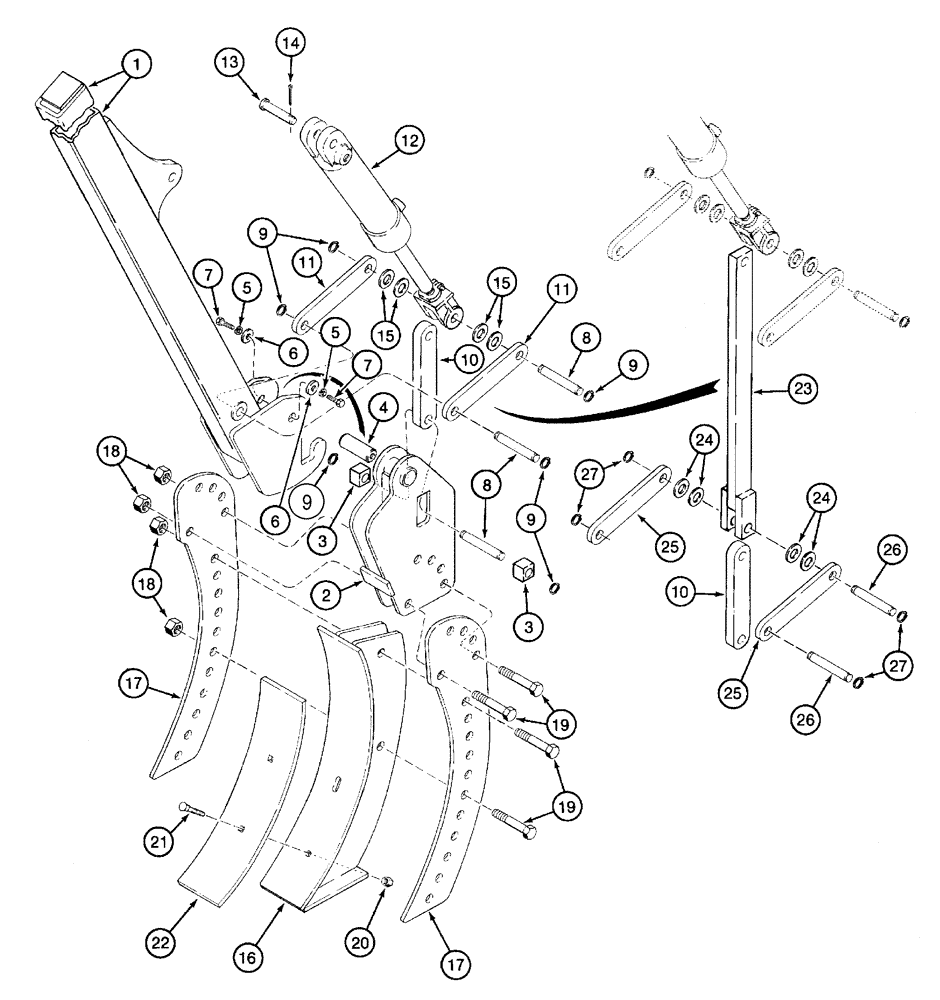

Запчасти Case 960 (09-36) - MOUNTING BOOM, HYDRAULIC CRUMBER (09) - CHASSIS

1

H672769

TUBE,717.7, 100.8 mm L

4 ft, If Used

1шт.

1

H672852

TUBE,717.7, 140.7 mm L

5 ft, If Used

1шт.

1

H672853

TUBE,1389.7, 140.7 mm L

6 ft, If Used

1шт.

1

H672854

TUBE,140.7, 1389.7 mm L

7 ft, If Used

1шт.

2

H672767

PIVOT

1шт.

3

H435440

BLOCK

2шт.

4

H434920

PIN

1шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

6

495-81269

WASHER,0.53" ID x 2" OD x 0.24" Thk

17/32 x 2 x 1/4

2шт.

7

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

8

D137151

PIN,25.4mm OD x 122.6mm L

1 x 4-13/16

3шт.

9

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

6шт.

10

H435270

LINK

1шт.

11

H434627

LINK

2шт.

12

G34197

CYLINDER ASSY.

76 ID x254 mm, Crumber, See Page(s) 8-217

1шт.

13

427-16350

CLEVIS PIN,25.4mm OD x 88.9mm L

1 x 3-1/2, Hardened

1шт.

14

432-1028

COTTER PIN,5/32" x 1 3/4"

1шт.

15

H426833

WASHER

1-1/16 x 1-7/8 x 9/64

6шт.

16

H672768

SHOE (ASSY)

1шт.

17

102540A1

LARGE PLATE

PLATE, LARGE

1шт.

18

231-51412

FLANGE NUT,Flg, USR, 3/4"-10

4шт.

19

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

3/4 x 4

4шт.

20

232-4118

NUT,1/2"-13, GC

2шт.

21

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

2шт.

22

H434309

HALF BLADE

5 in wide

1шт.

22

H434952

HALF BLADE

7 in wide

1шт.

22

H434953

HALF BLADE

9 in wide

1шт.

22

H434954

HALF BLADE

11 in wide

1шт.

22

120955A1

BLADE

13 in wide

1шт.

22

120956A1

BLADE

15 in wide

1шт.

22

120957A1

BLADE

17 in wide

1шт.

23

107751A1

BAR

Extension, If Used

1шт.

24

H426833

WASHER

1-1/16 x 1-7/8 x 9/64, If Used

4шт.

25

H434627

LINK

If Used

2шт.

26

D137151

PIN,25.4mm OD x 122.6mm L

1 x 4-13/16, If Used

2шт.

27

D25277

SNAP RING,23.5mm ID x 2.62mm Thk

If Used

4шт.
