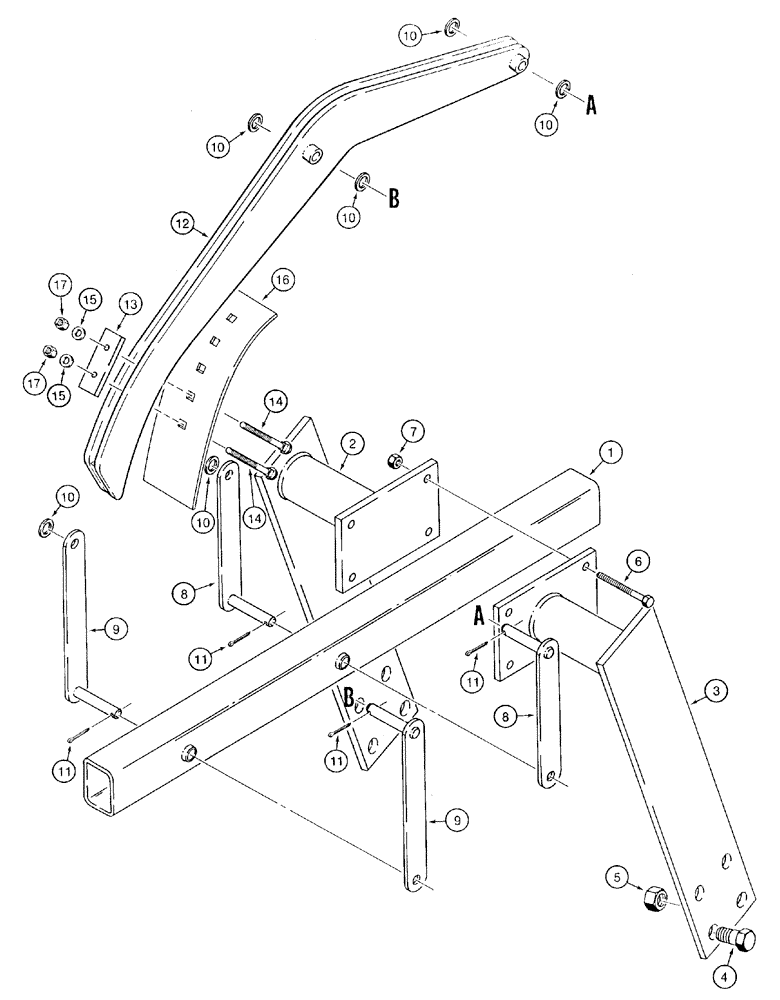

Запчасти Case 960 (09-35) - MOUNTING BOOM, CRUMBER AND CHAIN GUARD (09) - CHASSIS

1

H672169

TUBE,190, 398 mm L

4 ft, Crumber, If Used

1шт.

1

H672170

TUBE,1598 mm L

5 ft, Crumber, If Used

1шт.

1

H672171

TUBE,1928 mm L

6 ft, Crumber, If Used

1шт.

1

H672172

TUBE,2258 mm L

7 ft, Crumber, If Used

1шт.

1

H434220

TUBE,1268 mm L

4 ft, Digging Chain, Without Crumber, If Used

1шт.

1

H434221

TUBE,1598 mm L

5 ft, Digging Chain, Without Crumber, If Used

1шт.

1

H434222

TUBE,1928 mm L

6 ft, Digging Chain, Without Crumber, If Used

1шт.

1

H434223

TUBE,2258 mm L

7 ft, Digging Chain, Without Crumber, If Used

1шт.

2

H672872

PLATE

Left Hand

1шт.

3

H672871

PLATE

Right Hand

1шт.

4

413-1632

BOLT,Hex, 1" - 8 x 2", Gr 5

1 x 2

8шт.

5

232-41116

LOCK NUT,1"-8, GC

8шт.

6

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

4шт.

7

232-41110

NUT,5/8"-11, GC

4шт.

8

H673072

LINK

Short

2шт.

9

H672721

LINK

Long

2шт.

10

495-11081

WASHER,3/4", SAE

6шт.

11

432-1220

COTTER PIN,3/16" x 1 1/4"

4шт.

12

H673071

ARM

1шт.

13

H309450

SPACER

1шт.

14

411-864

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 4", Gr 2

1/2 x 4; 2

2шт.

15

H274894

WASHER

2шт.

16

H127480

BLADE

6 in wide

1шт.

16

H60087

BLADE

8 in wide

1шт.

16

H60103

BLADE

10 in wide

1шт.

16

H60129

BLADE

11 in wide

1шт.

16

H60145

BLADE

13 in wide

1шт.

16

H60160

BLADE

16 in wide

1шт.

16

H60186

BLADE

18 in wide

1шт.

17

232-4118

NUT,1/2"-13, GC

2шт.
