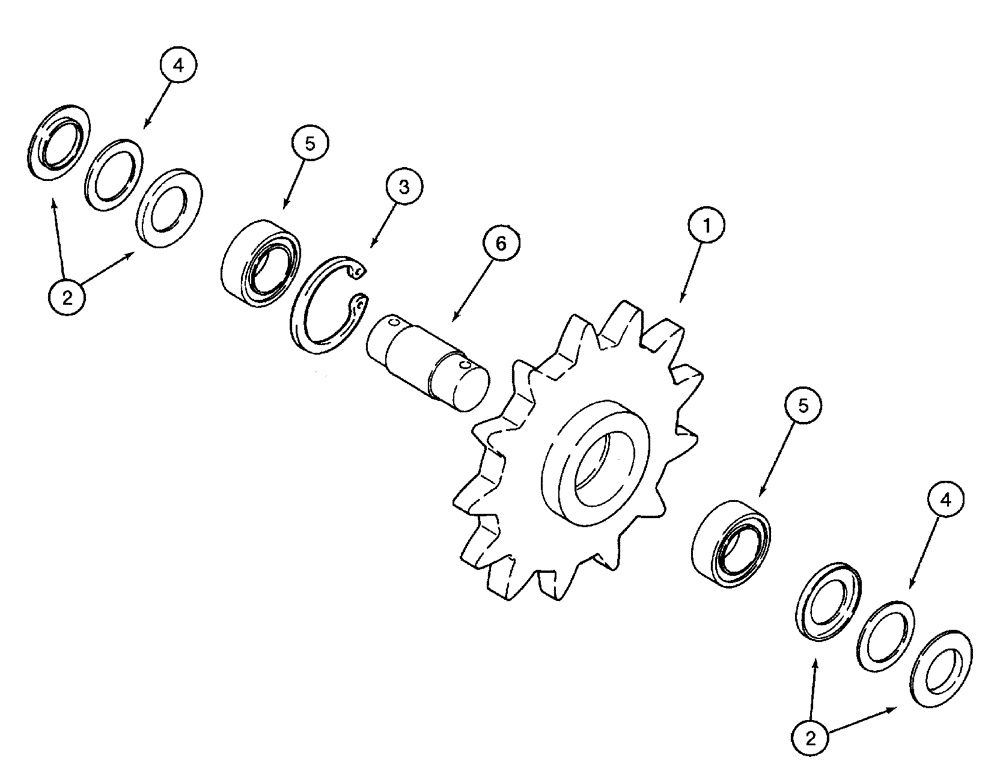

Запчасти Case 960 (09-28) - BOOM END SPROCKET (09) - CHASSIS

1

H433851

DRIVE SPROCKET

13T, If Used

1шт.

1

199343A1

SPROCKET ASSY.

11T, If Used, Not Illustrated

1шт.

2

H759109

SEAL

Two Piece

2шт.

3

100-21393

SNAP RING,3.938", Int, #393

1шт.

4

H433990

WASHER

2шт.

5

H747394

BEARING,55.6mm ID x 100mm OD x 33.4mm W

Boom End Sprocket

2шт.

6

H433777

SHAFT

Boom End Sprocket, Non-Lubricated

1шт.
