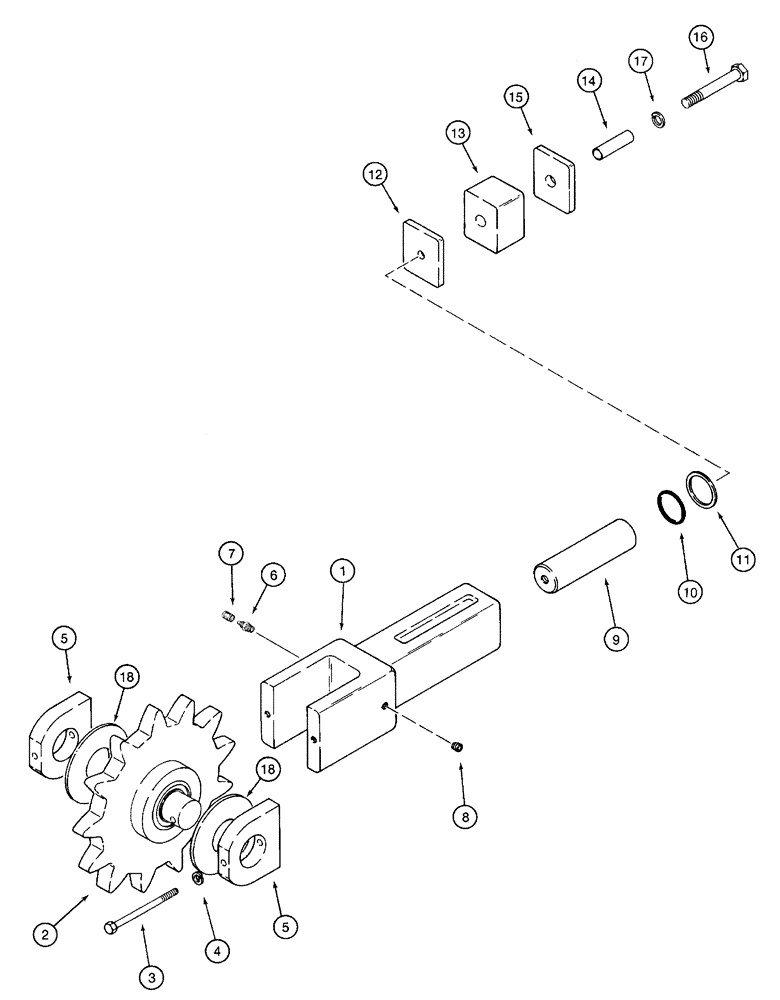

Запчасти Case 960 (09-26) - BOOM END, TRENCHER (09) - CHASSIS

Standard Boom

1шт.

1

H433863

END

1шт.

2

H433851

DRIVE SPROCKET

13T, See Page(s) 9-89 - 9-93, If Used

1шт.

2

199336A1

11T, See Page(s) 9-89 - 9-93, If Used

1шт.

3

426-896

BOLT,Hex, 1/2" - 13 x 6", Gr 8

2шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

5

H433404

CAP

2шт.

6

219-66

LUBE NIPPLE,1/8"-27 NPT, Dustproof

1/8 PT x 1, Includes 7

1шт.

7

NSS

NOT SOLD SEPARAT

Cap

1шт.

8

H114728

PLUG

1шт.

9

H114512

PLUNGER

Plunger

1шт.

10

238-6332

O-RING,0.21" Thk x 2.35" ID, -332, Cl 6, 90 Duro

1шт.

11

H745711

WASHER

1шт.

12

H433391

LARGE PLATE

PLATE, LARGE , Inner

1шт.

13

H433392

SHOCK ABSORBER

1шт.

14

H433509

TUBE,19.86 mm ID x 25.4 mm OD x 76 mm L

1шт.

15

H433508

LARGE PLATE

PLATE, LARGE , Outer

1шт.

16

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

17

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

18

H433867

WASHER

5/16

2шт.
