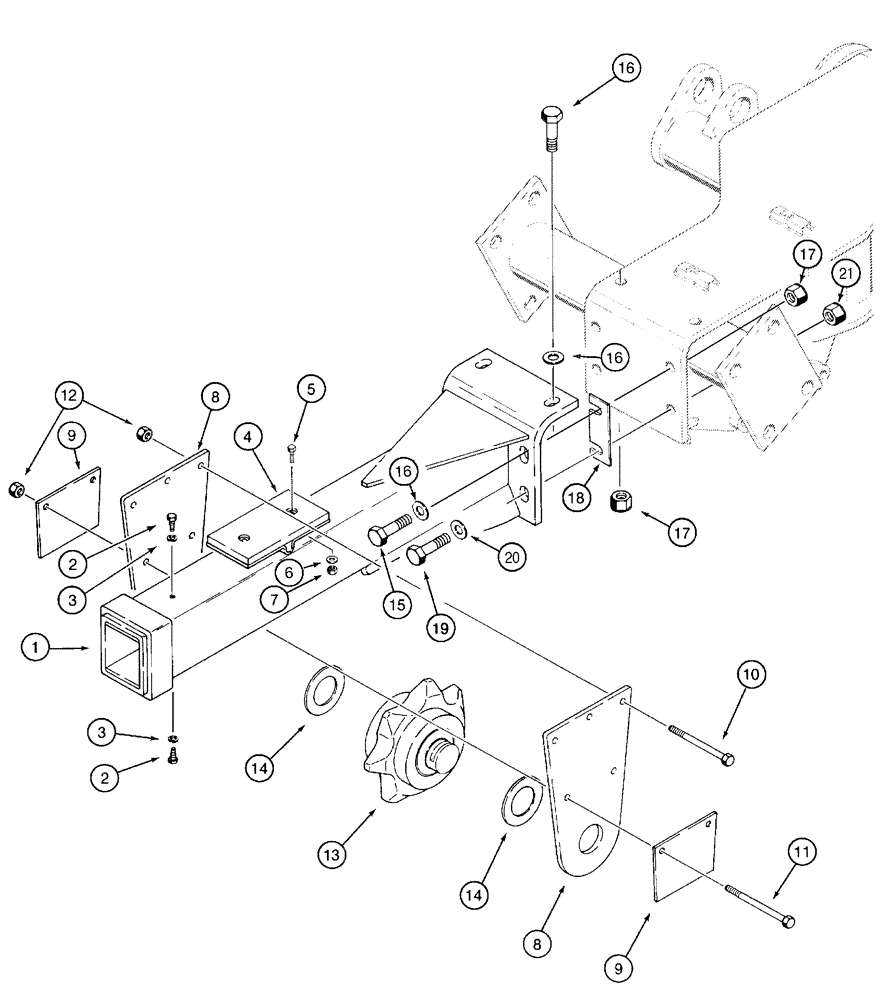

Запчасти Case 960 (09-25) - MOUNTING BOOM, TRENCHER (09) - CHASSIS

Standard Boom

1шт.

1

251021A1

BOOM

4 ft, Uses One Idler Sprocket, If Used

1шт.

1

251022A1

BOOM

5 ft, Uses One Idler Sprocket, If Used

1шт.

1

251023A1

BOOM

6 ft, Uses Two Idler Sprockets, If Used

1шт.

1

251024A1

BOOM

7 ft, Uses Two Idler Sprockets, If Used

1шт.

2

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

2шт.

3

H433867

WASHER

5/16

2шт.

4

179205A1

PROTECTOR

1-2шт.

5

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2-4шт.

6

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2-4шт.

Standard Boom

1шт.

7

230-4216

LOCK NUT,3/8"-16, GA

2-4шт.

8

H433947

LARGE PLATE

PLATE, LARGE , Idler Sprocket

2-4шт.

9

H433896

RETAINER

2-4шт.

10

413-884

BOLT,Hex, 1/2" - 13 x 5-1/4", Gr 5

1/2 x 5-1/4

3-6шт.

11

413-892

BOLT,Hex, 1/2" - 13 x 5-3/4", Gr 5

1/2 x 5-3/4

2-4шт.

12

230-4218

LOCK NUT,1/2"-13, GA

5-10шт.

13

H433989

DRIVE SPROCKET

Idler, See Page(s) 9-89 - 9-93

1-2шт.

14

H433867

WASHER

5/16

2-4шт.

15

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

4шт.

16

H426817

WASHER

Hardened

4шт.

17

232-41112

NUT,3/4"-10, GC

4шт.

18

251337A1

SHIM

1шт.

19

426-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8

1 NC x 2-1/2;8

2шт.

20

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

2шт.

21

232-41116

LOCK NUT,1"-8, GC

2шт.
