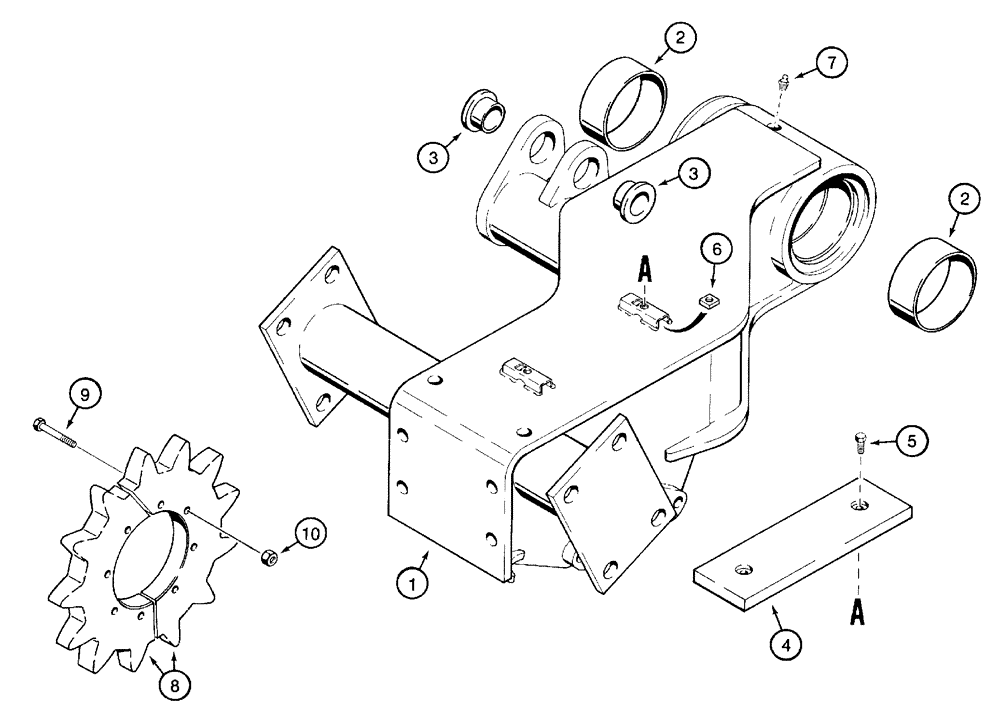

Запчасти Case 960 (09-24) - MOUNTING BOOM BRACKET, TRENCHER (09) - CHASSIS

103887A3

BOOM

Includes 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

Bracket

1шт.

2

H437509

BUSHING

Nylon

2шт.

3

H433624

BUSHING,38.23mm ID x 64mm OD x 25.5mm L

Lift Cylinder Pivot

2шт.

4

H434547

STRIP

Steel

1шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

6

84899

SQUARE NUT,Sq, 3/8"-16, G2

2шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

8

H438347

SPROCKET ASSY.

13T, Split, Two Piece, Digging Chain, If Used

1шт.

8

186255A1

SPROCKET ASSY.

14T, Split, Two Piece, If Used

1шт.

8

186276A1

SPROCKET ASSY.

11T, Split, Two Piece, If Used

1шт.

9

428-944

BOLT,Hex, 9/16" - 18 x 2-3/4", Gr 8

9/16 NF x 2-3/4; 8, Used With H438347, Used With 186255A1

8шт.

9

428-948

BOLT,Hex, 9/16" - 18 x 3", Gr 8

9/16 NF x 2-3/4; 8, Used With 186276A1

8шт.

10

232-4619

LOCK NUT,9/16"-18, GC

8шт.
