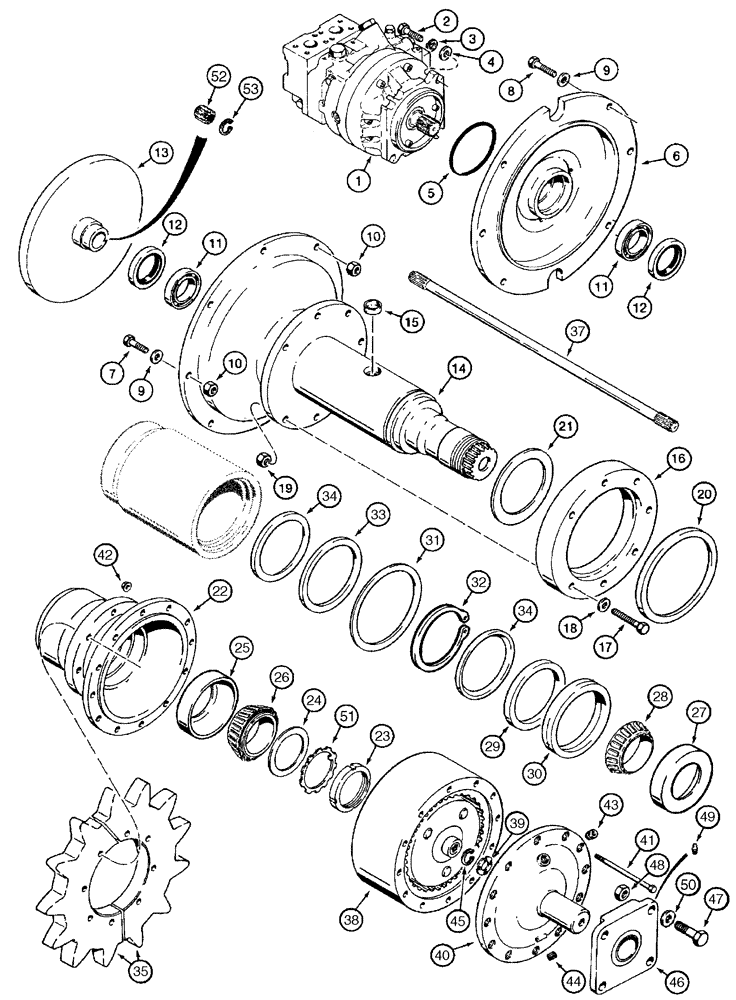

Запчасти Case 960 (09-23) - MOUNTING DRIVE LINE (09) - CHASSIS

1

H674755

MOTOR

Trencher Drive, 2 speed, See Page(s) 8-137 - 8-149

1шт.

2

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

4

H274894

WASHER

4шт.

5

238-5049

O-RING,0.07" Thk x 4.986" ID, -49, Cl 5, 75 Duro

1шт.

6

H438702

COVER

1шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

8

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

6шт.

9

H274894

WASHER

8шт.

10

232-4118

NUT,1/2"-13, GC

8шт.

11

G13075

BEARING, BALL

2шт.

12

H438061

SEAL,53.98mm ID x 81.13mm OD x 11.1mm Thk

2шт.

13

H674887

FLYWHEEL

1шт.

14

H434813

PIVOT

Boom

1шт.

15

41-1020

PLUG,Cup, 1 1/4"

1-1/4

2шт.

16

H437580

SPACER

1шт.

17

426-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

7шт.

18

H274894

WASHER

7шт.

19

232-4118

NUT,1/2"-13, GC

7шт.

20

H437506

SEAL,166.65mm ID x 187.58mm OD x 9.93mm Thk

1шт.

21

H437581

WASHER

1шт.

22

H437596

HUB

1шт.

23

54-2015

BEARING LOCK NUT,Tan-15, Bearing

TAN-15

1шт.

24

L112617

WASHER

Hardened

1шт.

25

A67327

BEARING CUP,120 mm OD x 25 mm

Small

1шт.

26

A67328

ROLLER BEARING,74.98mm ID x 29.5mm W

Small

1шт.

27

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

Large

1шт.

28

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

Large

1шт.

29

H428839

SEAL,107.95mm ID x 133.5mm OD x 12.7mm Thk

Planetary

1шт.

30

H433852

SEAL

Hub

1шт.

31

103885A1

WASHER,159.04mm ID x 177.8mm OD x 3.17mm Thk

1шт.

32

S64875

SNAP RING

1шт.

33

H437582

WASHER,121.15mm ID x 150mm OD x 6.35mm Thk

1шт.

34

H437505

SEAL,118.57mm ID x 136.75mm OD x 8.33mm Thk

2шт.

35

H438347

SPROCKET ASSY.

13T, Split, Two Piece, Digging Chain

1шт.

37

H434946

SHAFT

Trencher Drive

1шт.

38

H674875

REDUCER

Planetary, Trencher Drive, Includes 39, See Page(s) 9-111

1шт.

39

N6363

WASHER

1шт.

40

H428714

COVER

Planetary

1шт.

41

413-692

BOLT,Hex, 3/8" - 16 x 5-3/4", Gr 5

3/8 x 5-3/4

12шт.

42

231-5146

FLANGE NUT,3/8"-16

12шт.

43

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

1шт.

44

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

Magnetic

1шт.

45

100-2175

SNAP RING,0.75", Int, #75

1шт.

46

H758292

BEARING

1шт.

47

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.

48

232-41110

NUT,5/8"-11, GC

4шт.

49

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

50

H426809

SPACER

4шт.

51

55-1015

1шт.

52

H435520

BUSHING

Coupling

1шт.

53

R22120

SNAP RING,1.312", Int, #131

1.312", Int, #131

1шт.
