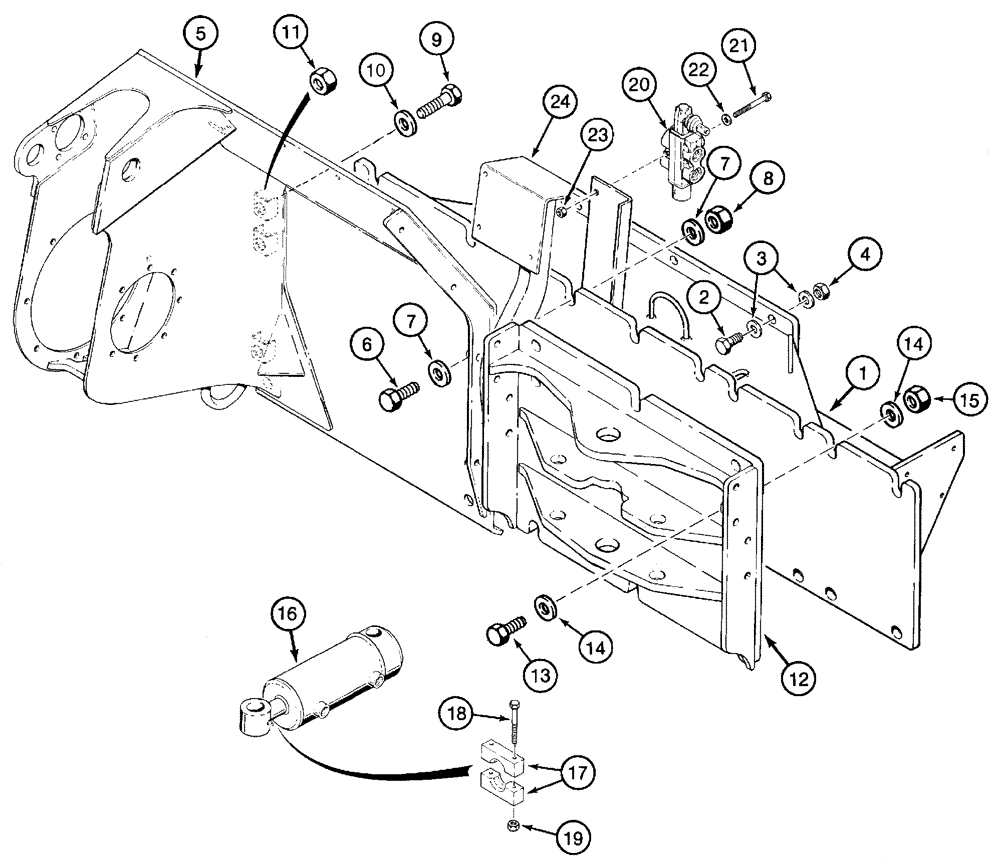

Запчасти Case 960 (09-22) - MOUNTING FRAME, REVERSED QUAD (09) - CHASSIS

1

106607A1

CHASSIS

1шт.

2

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

6шт.

3

H426833

WASHER

1-1/16 x 1-7/8 x 9/64

12шт.

4

232-41116

LOCK NUT,1"-8, GC

6шт.

5

116465A1

SUPPORT

1шт.

6

413-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5

2шт.

7

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

4шт.

8

232-41116

LOCK NUT,1"-8, GC

2шт.

9

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

2шт.

10

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

2шт.

11

232-41116

LOCK NUT,1"-8, GC

2шт.

12

H673800

PLATE

See Page(s) 9-159

1шт.

13

413-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 5

1 x 31/2

6шт.

14

H426833

WASHER

1-1/16 x 1-7/8 x 9/64

12шт.

15

232-41116

LOCK NUT,1"-8, GC

6шт.

16

H673704

CYLINDER,101.6 mm ID x 327 mm L

102 ID x 152 mm, Plow Swing, See Page(s) 8-185

2шт.

H675015

STOP

Right Hand, Includes 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

Block

1шт.

18

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

19

232-4116

NUT,3/8"-16, GC

2шт.

20

104946A1

VALVE

Selector, See Page(s) 8-197

1шт.

21

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

22

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

23

232-4116

NUT,3/8"-16, GC

2шт.

24

H675020

PEDESTAL

1шт.
