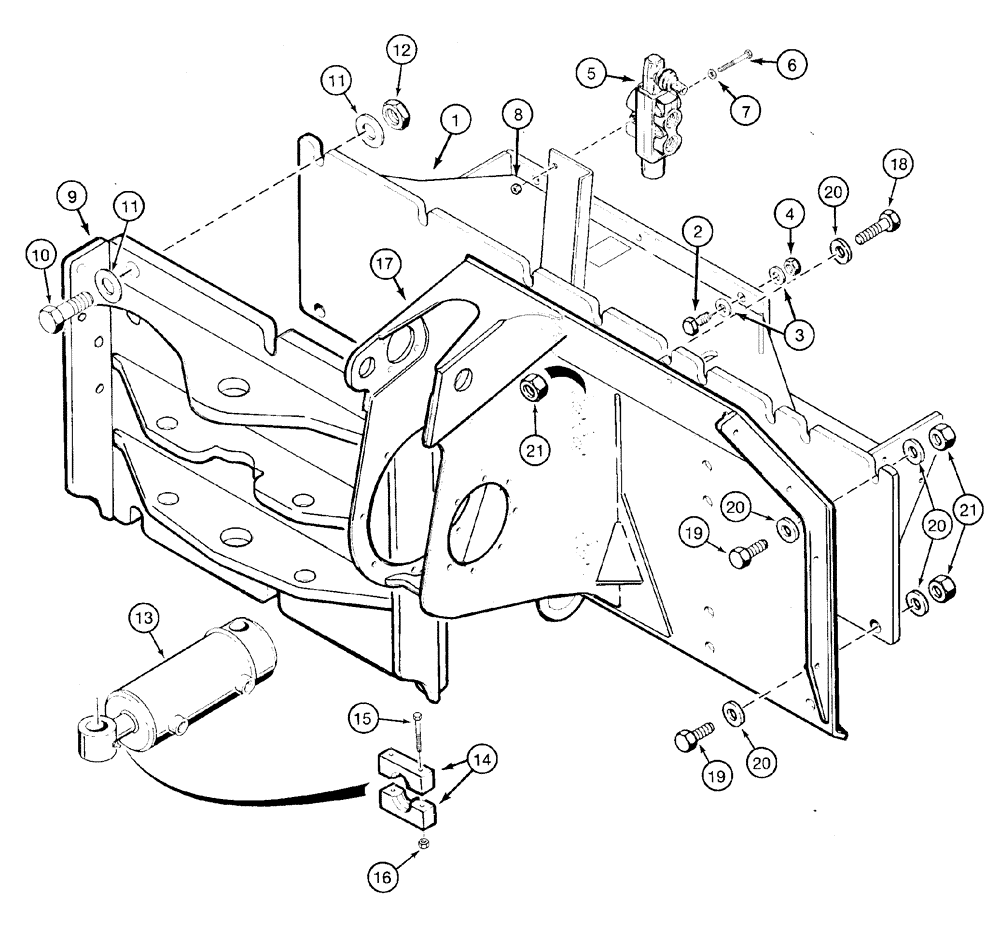

Запчасти Case 960 (09-21) - MOUNTING FRAME, STANDARD QUAD (09) - CHASSIS

1

106607A1

CHASSIS

1шт.

2

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

6шт.

3

H426833

WASHER

1-1/16 x 1-7/8 x 9/64

12шт.

4

232-41116

LOCK NUT,1"-8, GC

6шт.

5

104946A1

VALVE

Selector, Trencher/Plow, See Page(s) 8-197

1шт.

6

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

7

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

8

232-4116

NUT,3/8"-16, GC

2шт.

9

H673800

PLATE

See Page(s) 9-159

1шт.

10

413-1656

BOLT,Hex, 1" - 8 x 3-1/2", Gr 5

1 x 31/2

6шт.

11

H426833

WASHER

1-1/16 x 1-7/8 x 9/64

12шт.

12

232-41116

LOCK NUT,1"-8, GC

6шт.

13

H673704

CYLINDER,101.6 mm ID x 327 mm L

102 ID x 152 mm, Plow Swing, See Page(s) 8-185

2шт.

H675015

STOP

Includes 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

Block

1шт.

15

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

16

232-4116

NUT,3/8"-16, GC

2шт.

17

116465A1

SUPPORT

See Page(s) 9-63

1шт.

18

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

2шт.

19

413-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 5

5шт.

20

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

12шт.

21

232-41116

LOCK NUT,1"-8, GC

7шт.
