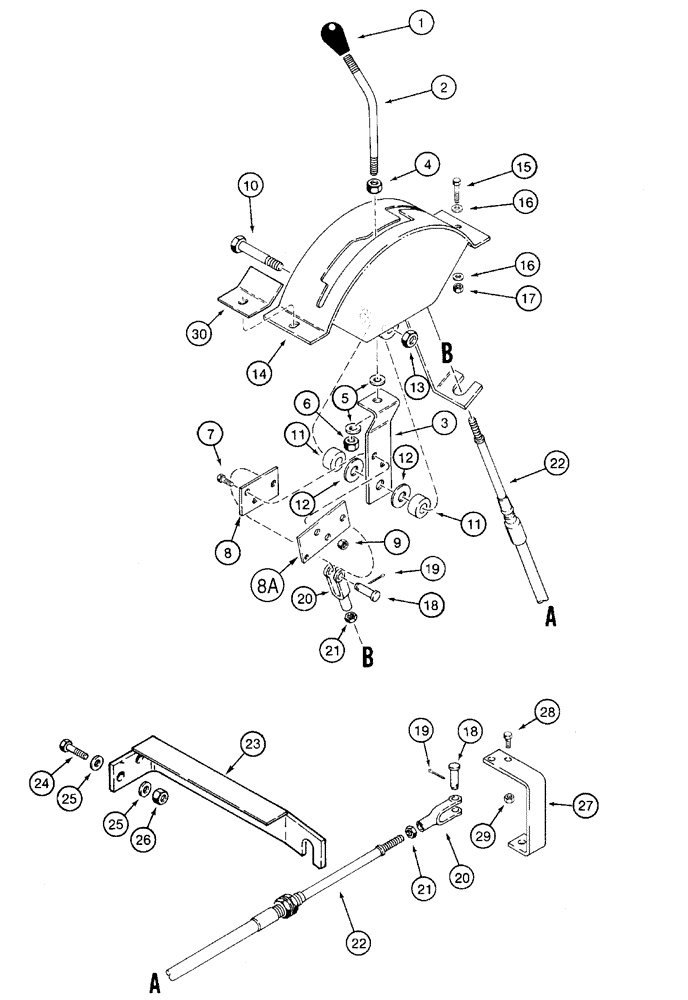

Запчасти Case 960 (09-18) - CONTROLS ATTACHMENT SPEED (09) - CHASSIS

H673441

CONTROL

Speed, Includes 1 - 14

1шт.

1

A14051

GRIP

Control Lever

1шт.

2

H191924

LEVER

1шт.

3

H434691

LEVER

Attachment Speed

1шт.

4

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

5

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

6

232-4116

NUT,3/8"-16, GC

1шт.

7

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

8

H433515

PLATE

Cable Mounting

1шт.

8a

H435825

LARGE PLATE

PLATE, LARGE

1шт.

9

230-4215

NUT,5/16"-18, GA

2шт.

10

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2 x 2-1/2

1шт.

11

H428284

SPACER

Lever

2шт.

12

H256305

WASHER

2шт.

13

230-4218

LOCK NUT,1/2"-13, GA

1шт.

14

H672244

CONTROL

Control Lever

1шт.

15

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

16

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

4шт.

17

232-4115

LOCK NUT,5/16"-18, GC

2шт.

18

H44206

CLEVIS COUPLING,7.94mm OD x 27.78mm L

5/16 x 1, Special

2шт.

19

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

20

A18709

CLEVIS

Cable End

2шт.

21

425-154

JAM NUT,Jam, 1/4"-28, G5

2шт.

22

H644401

CABLE

1шт.

23

410773A1

BRACKET

Cable Mounting

1шт.

24

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

25

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

26

232-4116

NUT,3/8"-16, GC

2шт.

27

383437A1

BRACKET

1шт.

28

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

29

230-4214

LOCK NUT,1/4"-20, GA

2шт.

30

H435573

STOP

Plow Speed Control

1шт.
