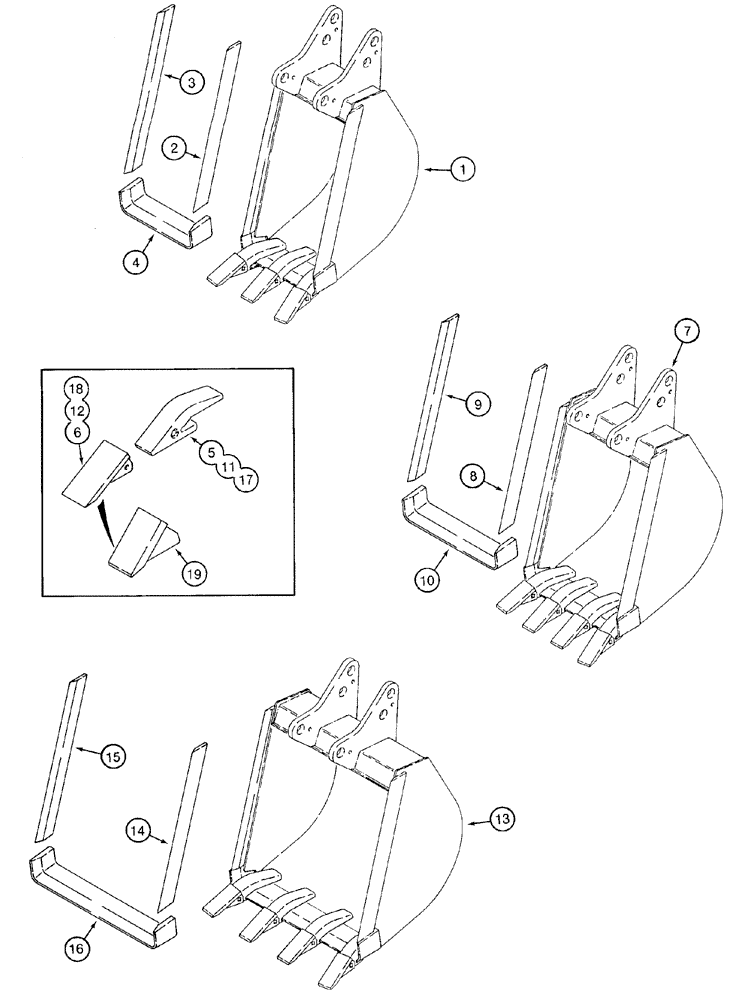

Запчасти Case 960 (09-17) - BUCKET, BACKHOE (09) - CHASSIS

1

H672513

BUCKET

Order From Machinery Price List, Includes 2 - 6

1шт.

2

H433581

EDGE

Right Hand Side

1шт.

3

H433584

EDGE

Left Hand Side

1шт.

H672510

EDGE

Center, Includes 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

Plate, Center, Includes 5 - 6

1шт.

5

NSS

NOT SOLD SEPARAT

Shank, Bucket Tooth

1шт.

6

D27748

TOOTH

Bucket Tooth

1шт.

7

H672514

BUCKET

458 mm (18 in), Order From Machinery Price List, Includes 8 - 12

1шт.

8

H433581

EDGE

Right Hand Side

1шт.

9

H433584

EDGE

Left Hand Side

1шт.

H672511

EDGE

Center, Includes 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

Plate, Center, Includes 11, 12

1шт.

11

NSS

NOT SOLD SEPARAT

Shank, Bucket Tooth

1шт.

12

D27748

TOOTH

Bucket Tooth

1шт.

13

H672515

BUCKET

610 mm (24 in), Order From Machinery Price List, Includes 14 - 18

1шт.

14

H433581

EDGE

Right Hand Side

1шт.

15

H433584

EDGE

Left Hand Side

1шт.

H672512

EDGE

Center, Includes 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

Plate, Center, Includes 17, 18

1шт.

17

NSS

NOT SOLD SEPARAT

Shank, Bucket Tooth

1шт.

18

D27748

TOOTH

Bucket Tooth

1шт.

19

D36720

TOOTH

Bucket Tooth, Heavy Duty, Service Option Only

1шт.
