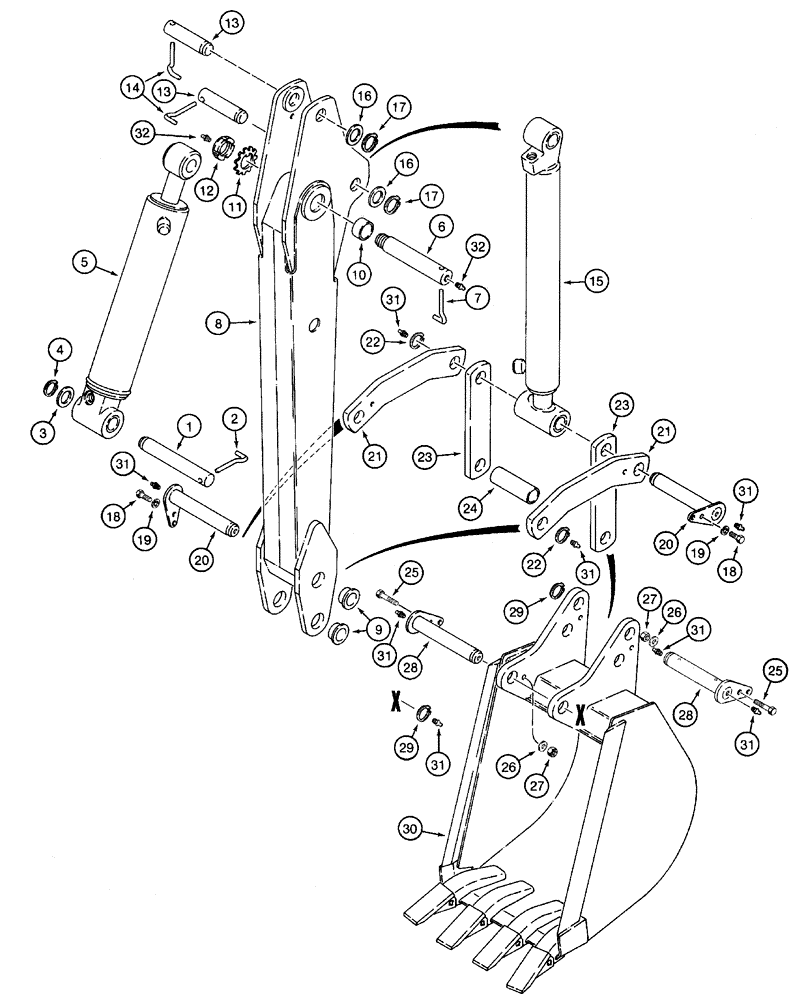

Запчасти Case 960 (09-16) - BACKHOE DIPPER AND BUCKET (09) - CHASSIS

1

H433742

PIN

1шт.

2

H433937

LARGE PIN,12.7mm OD

PIN, LARGE

1шт.

3

H161028

1шт.

4

D25279

SNAP RING,M35, Int

1шт.

5

138234A1

CYLINDER

102 ID x 441 strk, Dipper, See Page(s) 8-101

1шт.

6

H437962

PIN

1шт.

7

H433937

LARGE PIN,12.7mm OD

PIN, LARGE

1шт.

113177A1

BOOM

Backhoe, Includes 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Dipper

1шт.

9

H433624

BUSHING,38.23mm ID x 64mm OD x 25.5mm L

4шт.

10

113138A1

BUSHING

Hardened Steel

1шт.

11

55-1009

Bearing Lock

1шт.

12

154-1009

1шт.

13

H433743

PIN

2шт.

14

H433937

LARGE PIN,12.7mm OD

PIN, LARGE

2шт.

15

H672570

CYLINDER

75 ID x 654 strk, Bucket, See Page(s) 8-103

1шт.

16

H61028

WASHER

1шт.

17

D25279

SNAP RING,M35, Int

2шт.

18

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

19

492-11038

LOCK WASHER,3/8"

2шт.

20

H672559

PIN

Bucket Links

2шт.

21

H433745

LINK

Curved

2шт.

22

D25279

SNAP RING,M35, Int

2шт.

23

H433746

LINK

2шт.

24

H433749

SPACER

Bucket Links

1шт.

25

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

26

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

27

232-4116

NUT,3/8"-16, GC

2шт.

28

H672559

PIN

2шт.

29

D25279

SNAP RING,M35, Int

2шт.

30

H672513

BUCKET

See Page(s) 9-51

1шт.

31

219-1

LUBE NIPPLE,1/8" - 27 NPTF

8шт.

32

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.
