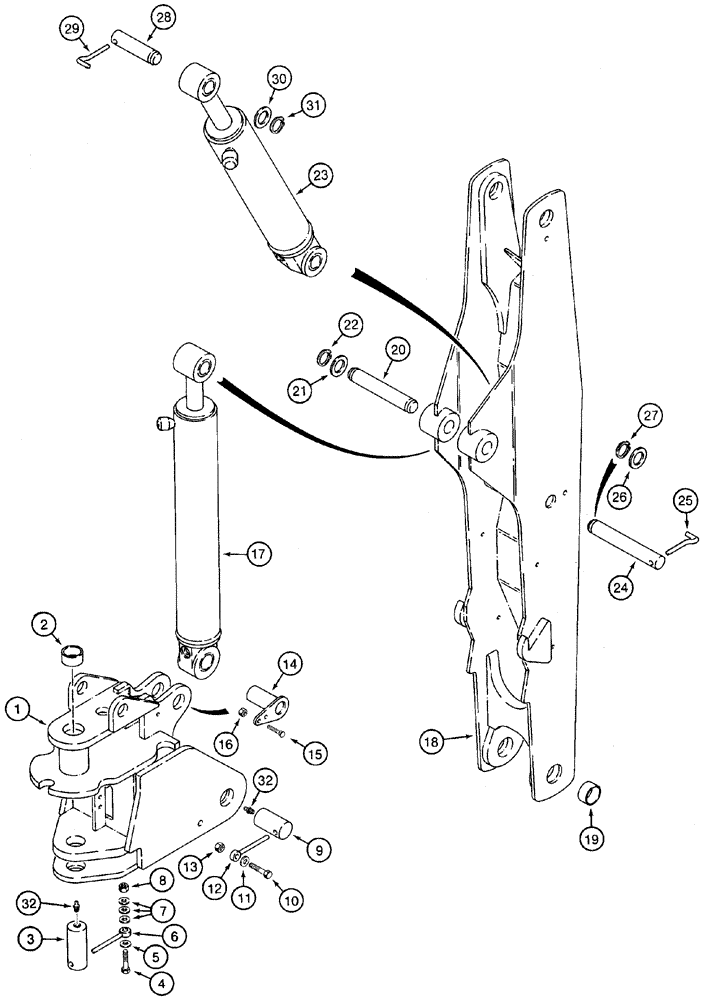

Запчасти Case 960 (09-14) - BACKHOE BOOM AND SWING TOWER (09) - CHASSIS

1

113171A1

CASING

1шт.

2

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

2 x 2-1/2 x 2

1шт.

3

H437959

PIN

1шт.

4

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

5

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

1шт.

6

L109671

ROD

Retaining

1шт.

7

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

3шт.

8

230-4218

LOCK NUT,1/2"-13, GA

1шт.

9

H437961

PIN

2шт.

10

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

11

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

2шт.

12

L109671

ROD

Retaining

2шт.

13

230-4218

LOCK NUT,1/2"-13, GA

2шт.

14

H672354

PIN

1шт.

15

433-624

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

1шт.

16

232-4116

NUT,3/8"-16, GC

1шт.

17

H672568

CYLINDER

102 ID x 622 strk, Boom, See Page(s) 8-97

1шт.

18

113170A1

BOOM

1шт.

19

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

2шт.

20

H433739

PIN

1шт.

21

H61028

WASHER

1шт.

22

D25279

SNAP RING,M35, Int

2шт.

23

138234A1

CYLINDER

102 ID x 441 strk, Dipper, See Page(s) 8-101

1шт.

24

H433742

PIN

1шт.

25

H433937

LARGE PIN,12.7mm OD

PIN, LARGE

1шт.

26

H61028

WASHER

1шт.

27

D25279

SNAP RING,M35, Int

1шт.

28

H433743

PIN

1шт.

29

H433937

LARGE PIN,12.7mm OD

PIN, LARGE

1шт.

30

H61028

WASHER

1шт.

31

D25279

SNAP RING,M35, Int

1шт.

32

219-8

LUBE NIPPLE,1/4" - 28 NPTF

3шт.
