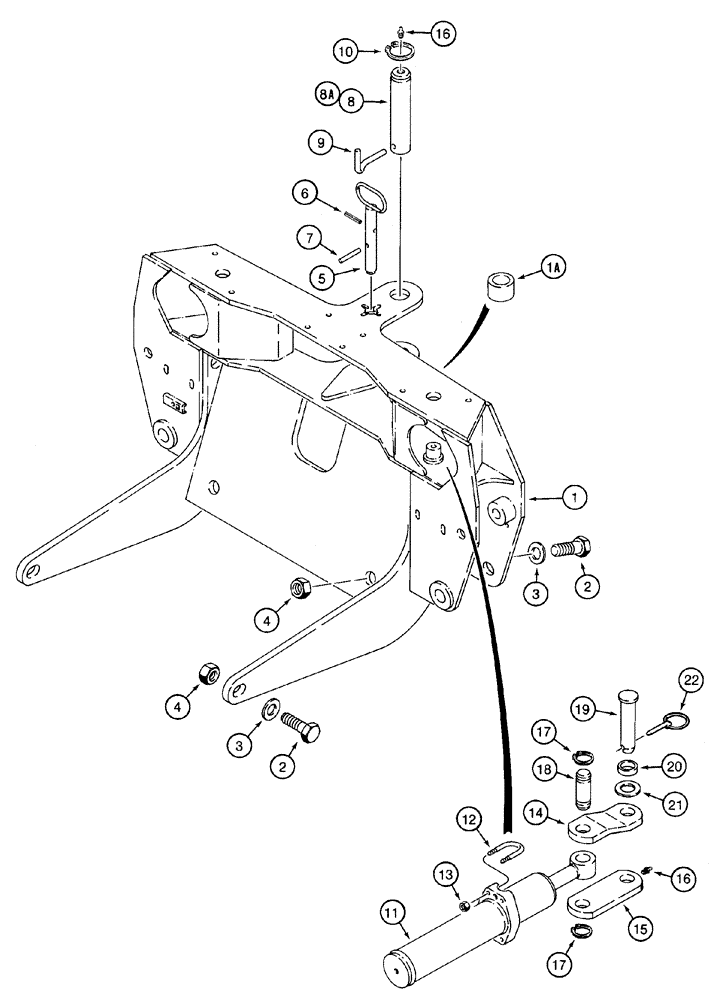

Запчасти Case 960 (09-12) - FRAME BACKHOE MOUNTING (09) - CHASSIS

1

113174A1

FRAME

1шт.

1a

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

2 x 2-1/2 x 2

1шт.

2

413-2056

BOLT,Hex, 1-1/4" - 7 x 3-1/2", Gr 5

1-1/4 x 3-1/2

4шт.

3

H426858

WASHER

1-1/4

4шт.

4

230-41120

LOCK NUT,1 1/4"-7, GA

1-1/4

4шт.

5

H672507

PIN

Includes 6

1шт.

6

38-12028

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

7

38-12044

LOCK PIN,5/16" x 2 3/4", Slotted

5/16" x 2 3/4", Slotted

1шт.

8

H437192

PIN

Not Used

1шт.

8a

H437960

PIN

See Page(s) 9-41

1шт.

9

H433937

LARGE PIN,12.7mm OD

PIN, LARGE

1шт.

10

103-16200

SNAP RING,#200, Ext

1шт.

11

H672571

CYLINDER ASSY.

83 ID x 341 strk, Backhoe Swing, See Page(s) 8-93

2шт.

12

H110270

HARDWARE

4шт.

13

232-4115

LOCK NUT,5/16"-18, GC

8шт.

14

H111583

DRAG LINK

Swing Cylinder

2шт.

15

H111575

LINK

2шт.

16

219-8

LUBE NIPPLE,1/4" - 28 NPTF

3шт.

17

D25279

SNAP RING,M35, Int

4шт.

18

H434262

PIN

Link

2шт.

19

H76851

AXLE PIN

1шт.

20

H434263

SPACER

Link

1шт.

21

H61028

WASHER

1шт.

22

D33805

PIN

2шт.
