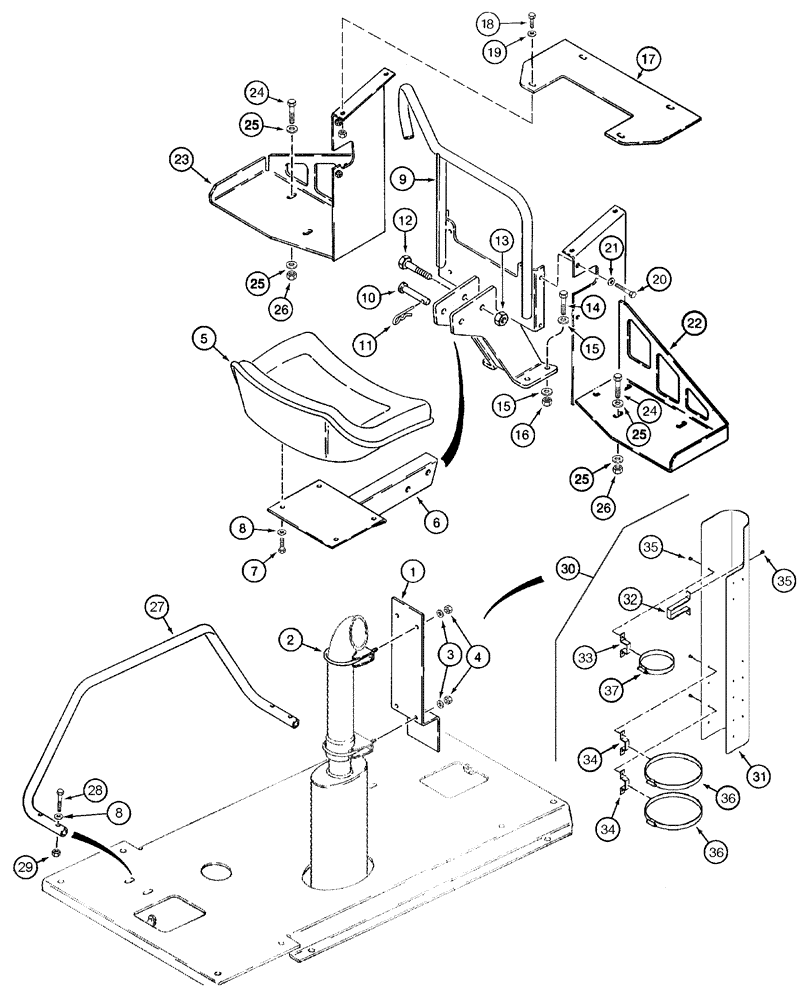

Запчасти Case 960 (09-10) - BACKHOE PLATFORM (09) - CHASSIS

1

H434212

SHIELD

Muffler

1шт.

2

H434145

CLAMP

1шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

4

232-4116

NUT,3/8"-16, GC

4шт.

5

179332A1

SEAT

Component Parts Not Serviced Separately

1шт.

6

H673473

LARGE PLATE

PLATE, LARGE

1шт.

7

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

8

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

8шт.

9

H672346

CONSOLE

1шт.

10

S10839

CLEVIS PIN,19.05mm OD x 95.25mm L

4 x 3-1/2, Special

1шт.

11

136-164

COTTER PIN,Int, 5/16" x .120"

5/16 x 2-3/4

1шт.

12

413-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

1шт.

13

230-42112

LOCK NUT,3/4"-10, GA

1шт.

14

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

15

496-21053

WASHER,17/32" x 1 1/16" x .134"

8шт.

16

232-4118

NUT,1/2"-13, GC

4шт.

17

H436285

COVER

1шт.

18

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

19

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

20

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

21

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

22

H673481

GUARD

Right Hand

1шт.

23

H673480

PROTECTOR

Left Hand

1шт.

24

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

6шт.

25

496-21053

WASHER,17/32" x 1 1/16" x .134"

12шт.

26

232-4118

NUT,1/2"-13, GC

6шт.

27

H434213

RAIL

1шт.

28

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

4шт.

29

232-4115

LOCK NUT,5/16"-18, GC

4шт.

Europe Only

1шт.

30

223514A1

SHIELD

Muffler, Includes 31 - 35, Component Parts Not Serviced Separately

1шт.

31

NSS

NOT SOLD SEPARAT

Shield, Heat

1шт.

32

NSS

NOT SOLD SEPARAT

Bracket

1шт.

33

NSS

NOT SOLD SEPARAT

Bracket

2шт.

34

NSS

NOT SOLD SEPARAT

Bracket

6шт.

35

NSS

NOT SOLD SEPARAT

Rivet

18шт.

36

214-31104

HOSE CLAMP,5-3/4" - 6-5/8", HD Worm

2шт.

37

214-3260

HOSE CLAMP,3" - 3-7/8", HD Worm, W/ Liner

1шт.
