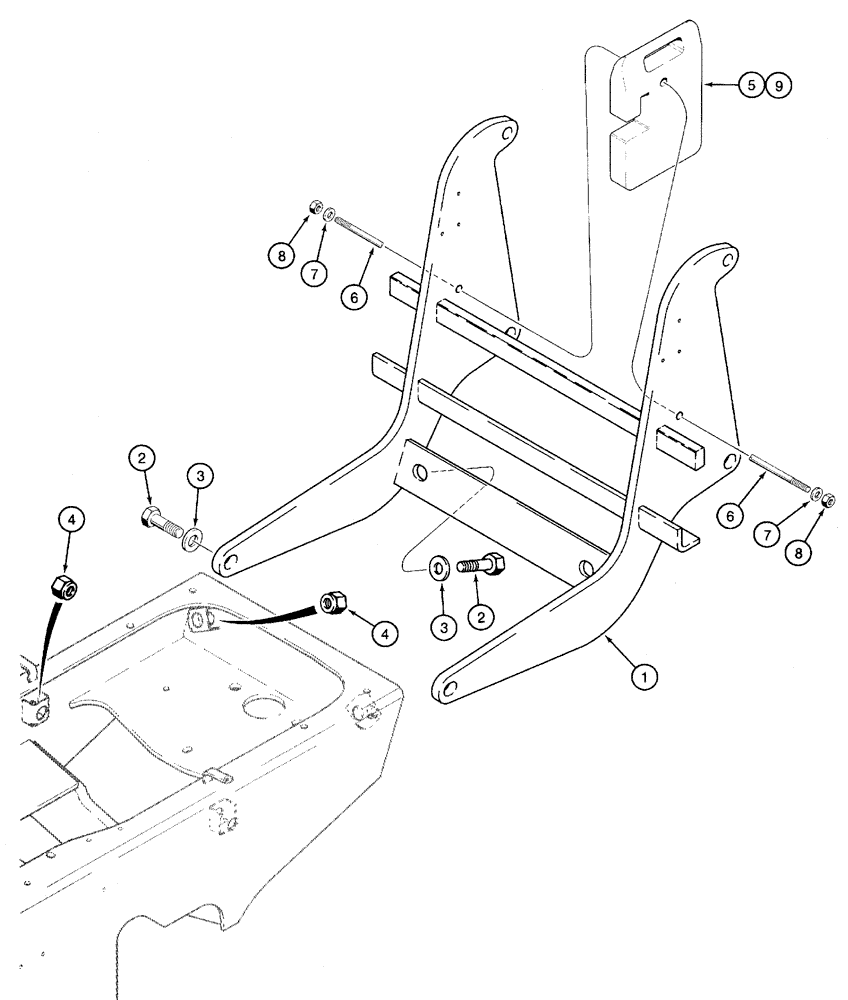

Запчасти Case 960 (09-08) - COUNTERWEIGHT, FRONT (09) - CHASSIS

Models With Quad Option/Without Backhoe/With Reel Carrier

1шт.

H939388

BRACKET

Weight Attach, Includes 1 - 8

1шт.

1

H674971

CHASSIS

1шт.

2

413-2056

BOLT,Hex, 1-1/4" - 7 x 3-1/2", Gr 5

1-1/4 x 3-1/2, Hardened

4шт.

3

H426858

WASHER

1-1/4

4шт.

4

232-41120

LOCK NUT,1 1/4"-7, GC

4шт.

5

109364A1

WEIGHT

27.4 kg (60.3 lbs), Front

3шт.

6

104279A1

ROD

Retaining

1шт.

7

495-11066

WASHER,5/8", SAE

21/32 x 1-5/16 x 3/32

2шт.

8

232-41110

NUT,5/8"-11, GC

2шт.

H939223

KIT

Weight, Includes 9

1шт.

9

109364A1

WEIGHT

27.4 kg (60.3 lbs), Front

6шт.
