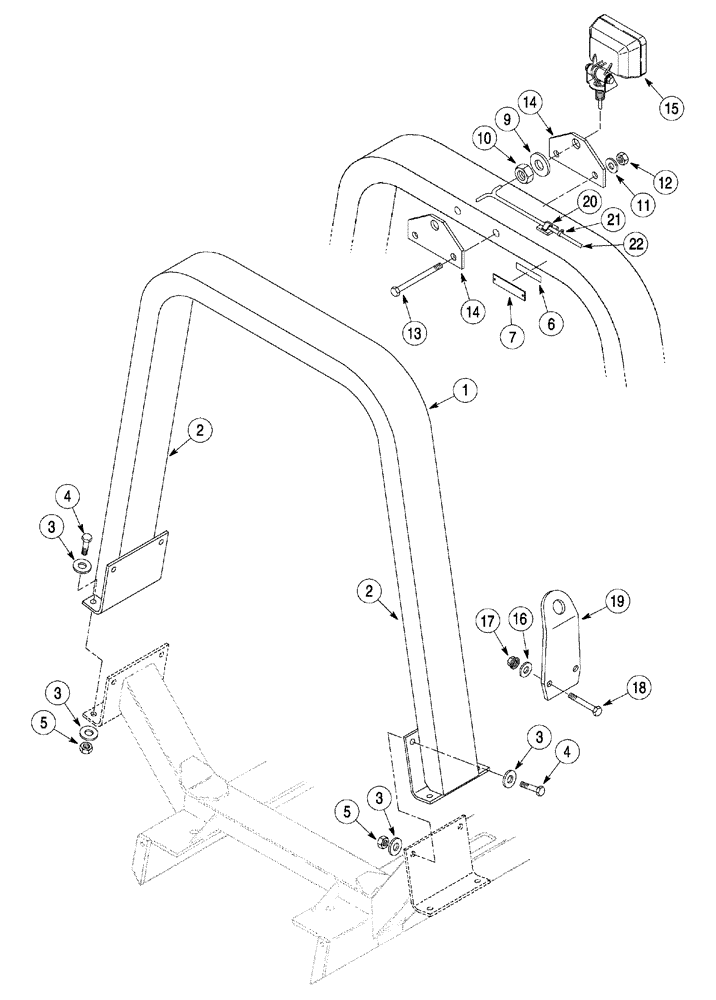

Запчасти Case 960 (09-06) - FRAME ROPS (09) - CHASSIS

1

399010A4

ROPS, Order From Machinery Price List, Includes 2

1шт.

2

NSS

NOT SOLD SEPARAT

Frame

1шт.

3

H426809

SPACER

16шт.

4

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

5/8 x 2; 8

8шт.

5

232-41110

NUT,5/8"-11, GC

8шт.

6

114739A1

1шт.

7

NSS

NOT SOLD SEPARAT

Plate, ROPS

1шт.

8

414635A1

COVER,25.4mm OD x 0.51mm Thk

N.A. Models Only, Not Illustrated

4шт.

European Models

1шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

Working light

2шт.

10

425-108

NUT,1/2" - 13, Gr 5

Working Light

2шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

13

814-40140

2шт.

14

224451A1

BRACKET

Working Light

2шт.

15

D126237

HEADLIGHT

12V, Work Lamp, See Page(s) 4-37

2шт.

16

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

17

829-1416

NUT,M16, Cl 10

4шт.

18

828-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

4шт.

19

225509A1

EYE

2шт.

20

H439303

CLIP

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in, Nylon

1шт.

22

223534A1

HARNESS

Special Wiring, See Page(s) 4-35

1шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
