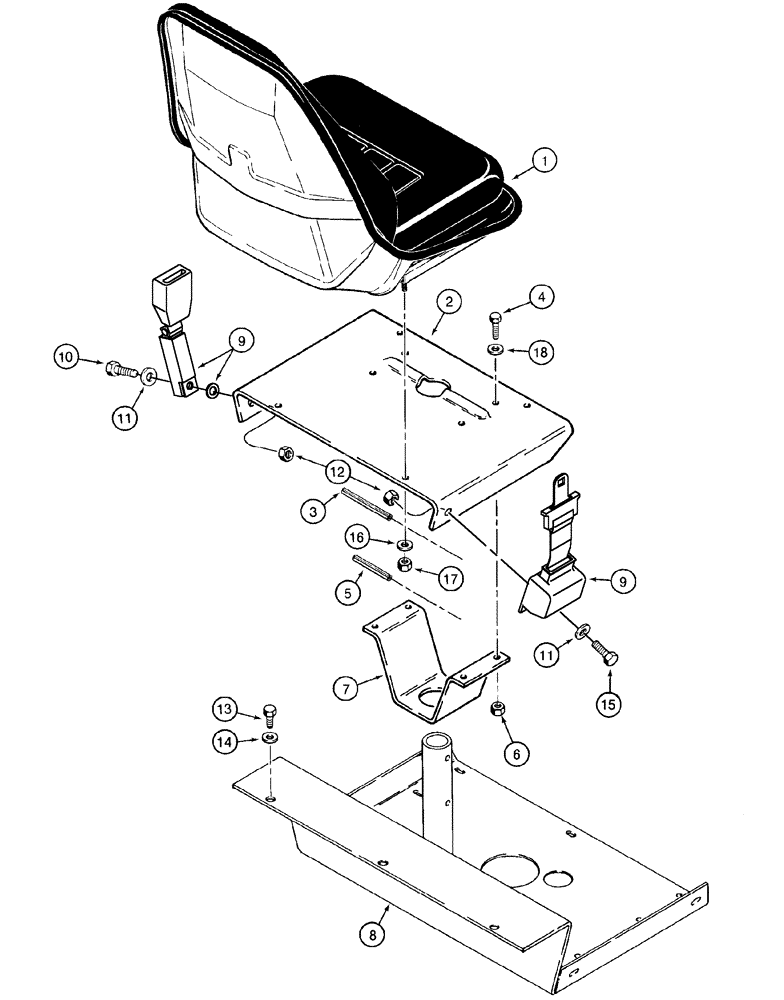

Запчасти Case 960 (09-05) - SEAT MOUNTING (09) - CHASSIS

1

400661A1

Tan, Component Parts Not Serviced Separately, Includes 242306A2, 302137A2, Used In Production, For Service, Order 400680A1

1шт.

242306A2

SWITCH

Operator Presence

1шт.

302137A2

HARNESS

Seat

1шт.

1

400680A1

SEAT

Service, Tan, Component Parts Not Serviced Separately, Includes 242306A2

1шт.

242306A2

SWITCH

Operator Presence, Purchase Harness Separately

1шт.

2

413349A1

PLATE

1шт.

3

38-12464

LOCK PIN,3/8" x 4", Slotted

3/8" x 4", Slotted

1шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

5

38-12444

LOCK PIN,3/8" x 2 3/4", Slotted

3/8" x 2 3/4", Slotted

1шт.

6

232-4116

NUT,3/8"-16, GC

4шт.

7

H336180

LARGE PLATE

PLATE, LARGE

1шт.

8

106775A2

PLATE

1шт.

9

249116A1

SAFETY BELT ,50.80 mm W

Retractable

1шт.

10

414-736

7/16 NF x 1-1/4

1шт.

11

496-21047

WASHER

15/32 x 59/64 x 7/64

2шт.

12

232-4617

LOCK NUT,7/16"-20, GC

2шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

14

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

5шт.

15

414-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5

1шт.

16

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

17

832-41308

NUT,M8 x 1.25, Cl 10

4шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.
