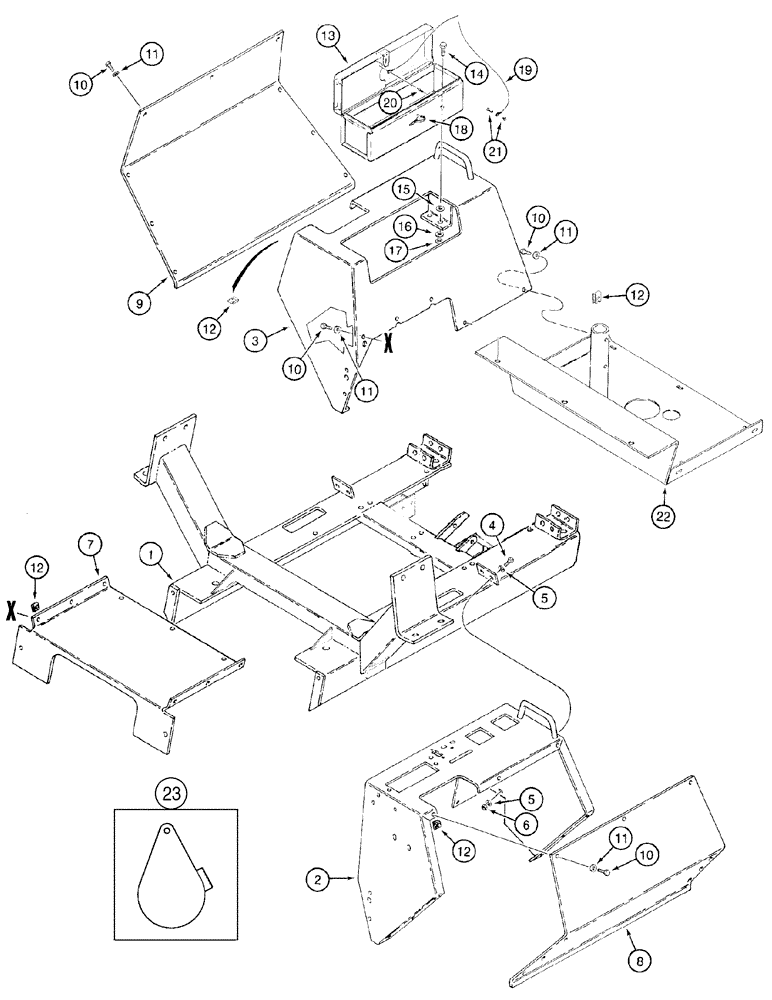

Запчасти Case 960 (09-04) - OPERATORS COMPARTMENT (09) - CHASSIS

1

399012A2

1шт.

2

H675007

CONSOLE

Right Hand

1шт.

3

H672355

CONSOLE

Left Hand

1шт.

4

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

5

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

8шт.

6

232-4115

LOCK NUT,5/16"-18, GC

4шт.

7

H433305

PLATE

Floor Plate, Rear

1шт.

8

H432096

PLATE

Right Hand Console

1шт.

9

H432195

PLATE

Left Hand Console

1шт.

10

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

28шт.

11

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

28шт.

12

H346650

NUT

28шт.

13

195309A1

BOX, TOOL

1шт.

14

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

15

H426767

WASHER

1шт.

16

H426767

WASHER

4шт.

17

230-4214

LOCK NUT,1/4"-20, GA

4шт.

18

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in

1шт.

19

R46465

CABLE,36mm L

1шт.

20

151-522

RIVET,Pop, 3/16" x .575"

3/16 x 7/32

1шт.

21

NSS

NOT SOLD SEPARAT

3/16 x 3/4, Retainer, Purchase Locally

1шт.

22

106775A2

PLATE

Seat Mounting

1шт.

23

442113A1

COVER

Floor Plate

1шт.
