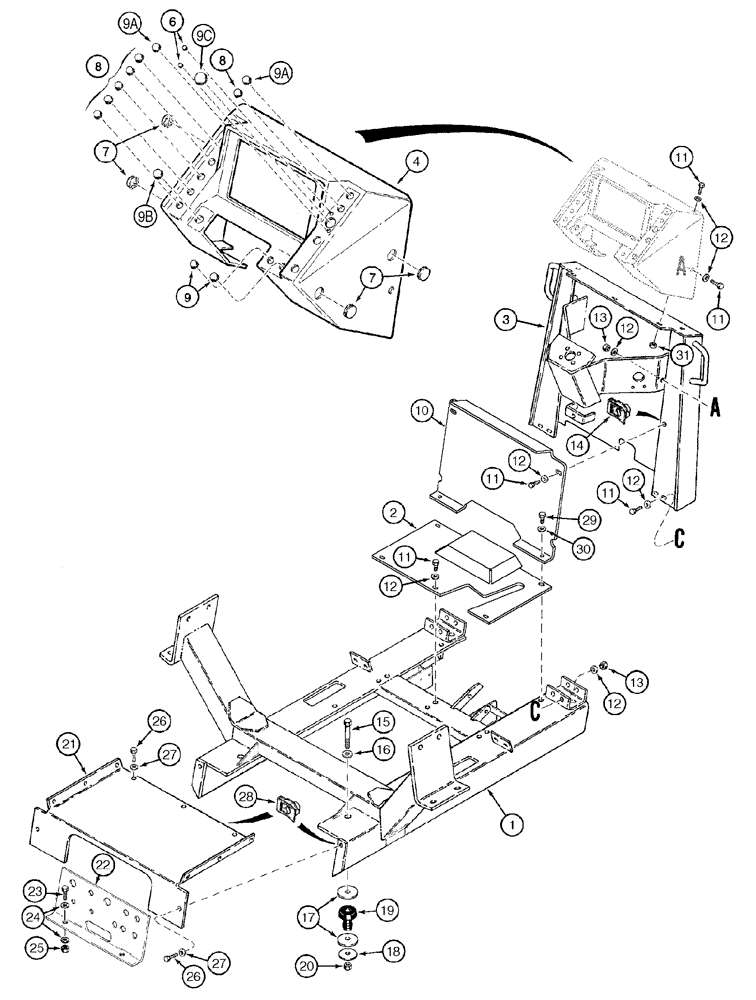

Запчасти Case 960 (09-03) - OPERATORS COMPARTMENT (09) - CHASSIS

1

399012A2

Compartment

1шт.

2

392640A2

FLOOR

Floor

1шт.

3

394122A1

CONSOLE

Steering

1шт.

4

179194A2

PANEL, INSTRUMENTS

PANEL, INSTRUMENT , Instrument

1шт.

6

353-400

PLUG,Dome, .250" hole, Nylon

2шт.

7

353-401

PLUG,Dome, .312" hole, Nylon

4шт.

8

353-402

PLUG,Dome, .375" hole, Nylon

6шт.

9

353-403

PLUG,Dome, .437" hole, Nylon

If Used

2шт.

9a

353-404

PLUG,Dome, .500" hole, Nylon

2шт.

9b

353-407

PLUG,Dome, .687" hole, Nylon

1шт.

9c

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

10

377242A2

PLATE

1шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

27шт.

12

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

18шт.

13

232-4115

LOCK NUT,5/16"-18, GC

6шт.

14

H346650

NUT

2шт.

15

113-2649

5/8 x 5

4шт.

16

H426809

SPACER

Rear

2шт.

17

A141470

WASHER

8шт.

18

D89007

WASHER

4шт.

19

A141451

SHOCK ABSORBER

4шт.

20

232-41110

NUT,5/8"-11, GC

4шт.

21

H433305

PLATE

1шт.

22

H439319

ANGLE

1шт.

23

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

24

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

25

232-4118

NUT,1/2"-13, GC

2шт.

26

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

27

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

5шт.

28

H346650

NUT

5шт.

29

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

5/16 x 1-1/4

4шт.

30

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

4шт.

31

H435223

NUT

5/16

5шт.
