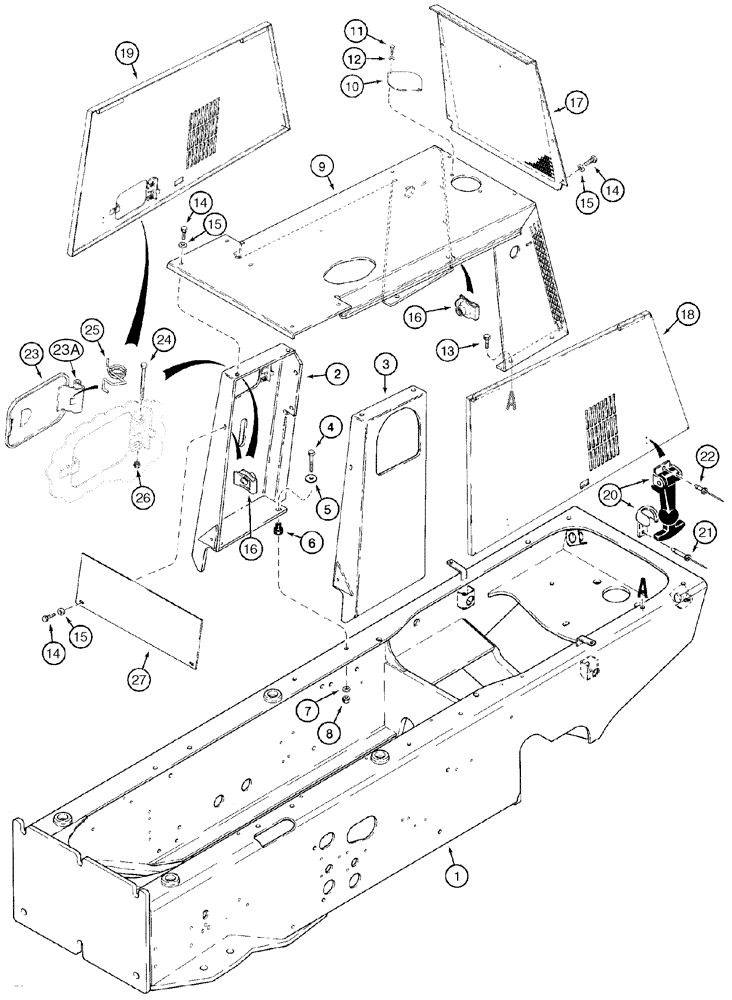

Запчасти Case 960 (09-01) - CHASSIS HOOD AND GRILLE (09) - CHASSIS

1

378050A3

CHASSIS

1шт.

2

383542A1

SUPPORT

Left Hand

1шт.

3

H674810

SUPPORT

Right Hand

1шт.

4

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2 x 2-1/2

4шт.

5

496-81018

WASHER,0.521" ID x 2" OD x 0.108 Thk, ZND

33/64 x 2 x 1/8, Hardened

4шт.

6

CASL13142

BUSHING

4шт.

7

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

8

410865A1

HOOD

1шт.

9

189684A1

COVER

Access

1шт.

10

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

11

H426767

WASHER

2шт.

12

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

4шт.

13

496-21053

WASHER,17/32" x 1 1/16" x .134"

4шт.

14

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

14шт.

15

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

14шт.

16

H346650

NUT

10шт.

17

282742A1

GRILLE

Radiator

1шт.

18

281811A1

PANEL

Right Hand

1шт.

19

281812A1

PANEL

Left Hand

1шт.

20

H672204

HOOD

Hood

4шт.

21

151-558

RIVET,Pop, 3/16" x .450"

3/16 x 1/2

8шт.

22

151-559

RIVET,Pop, 4.75mm OD x 12.7mm L

8шт.

23

D92446

DOOR

2шт.

24

413-452

BOLT,Hex, 1/4" - 20 x 3-1/4", Gr 5

2шт.

25

D121677

SPRING

2шт.

26

230-4214

LOCK NUT,1/4"-20, GA

2шт.

27

101730A1

SHIELD

1шт.

28

232-4115

LOCK NUT,5/16"-18, GC

2шт.
