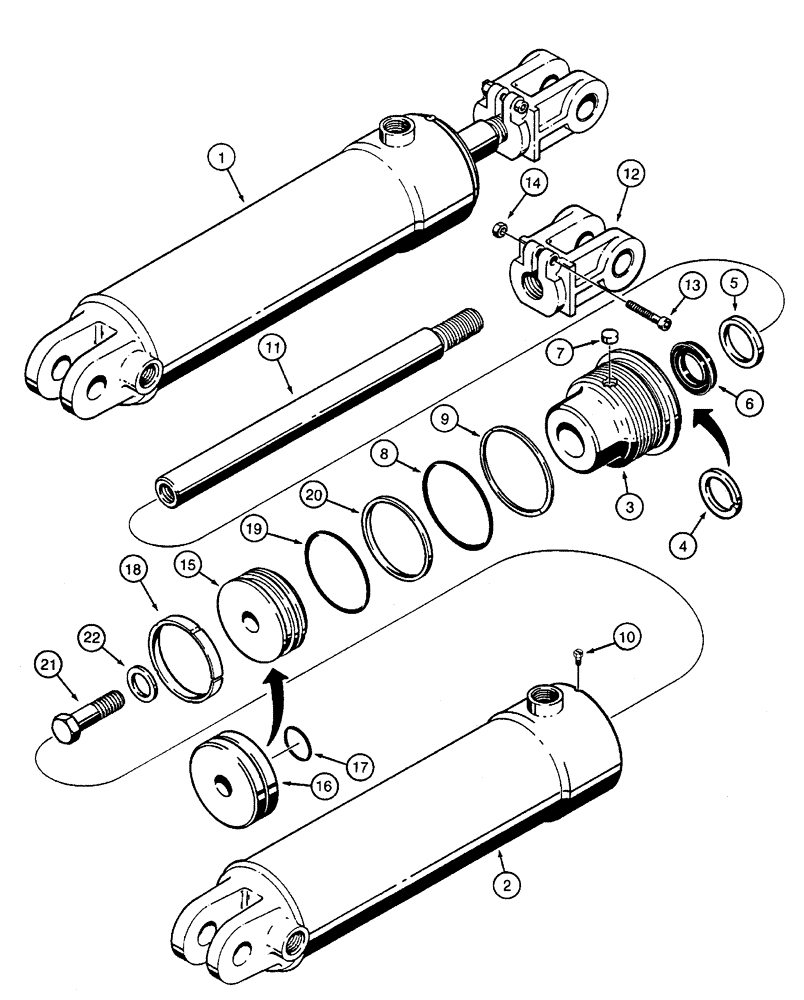

Запчасти Case 960 (08-68) - CYLINDER ASSY CRUMBER (08) - HYDRAULICS

1

G34197

CYLINDER ASSY.

76 ID x254 mm, Hydraulic Crumber, Includes 1 - 22

1шт.

2

G34199

TUBE,16.69" L

1шт.

1543161C1

GLAND

Includes 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

Gland, Cylinder

1шт.

1543318C2

SEAL KIT

Seal, Includes 4 - 6, 8, 9, 17 - 20

1шт.

4

G109092

SEAL,31.37mm ID x 44.63mm OD x 3.05mm Thk

Buffer, If Used

1шт.

5

D95141

WIPER SEAL

Piston Rod

1шт.

6

G32034

RING

Piston Rod

1шт.

7

353-779

PLUG,Sltd Hd, 3/4"-16, Yellow, Plastic, w/O-Ring

If Used

1шт.

8

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

1шт.

10

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

If Used

1шт.

11

113978A1

STEM

1шт.

12

G34450

CLEVIS

Adjustable, Piston Rod, Includes 13 - 14

1шт.

13

61-33828

HEX SOC SCREW,3/8"-16 x 1 3/4"

3/8 x 1-3/4

1шт.

14

25-106

NUT,3/8"-16, G5

3/8

1шт.

15

G34202

PISTON

Double Groove, If Used

1шт.

16

G104106

PISTON

Single Groove, If Used

1шт.

17

238-5026

O-RING,0.07" Thk x 1.239" ID, -26, Cl 5, 75 Duro

Used with Ref 16

1шт.

18

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

Piston, Used With, Ref 15

1шт.

19

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

20

G32034

RING

1шт.

21

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

22

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

Hardened

1шт.
