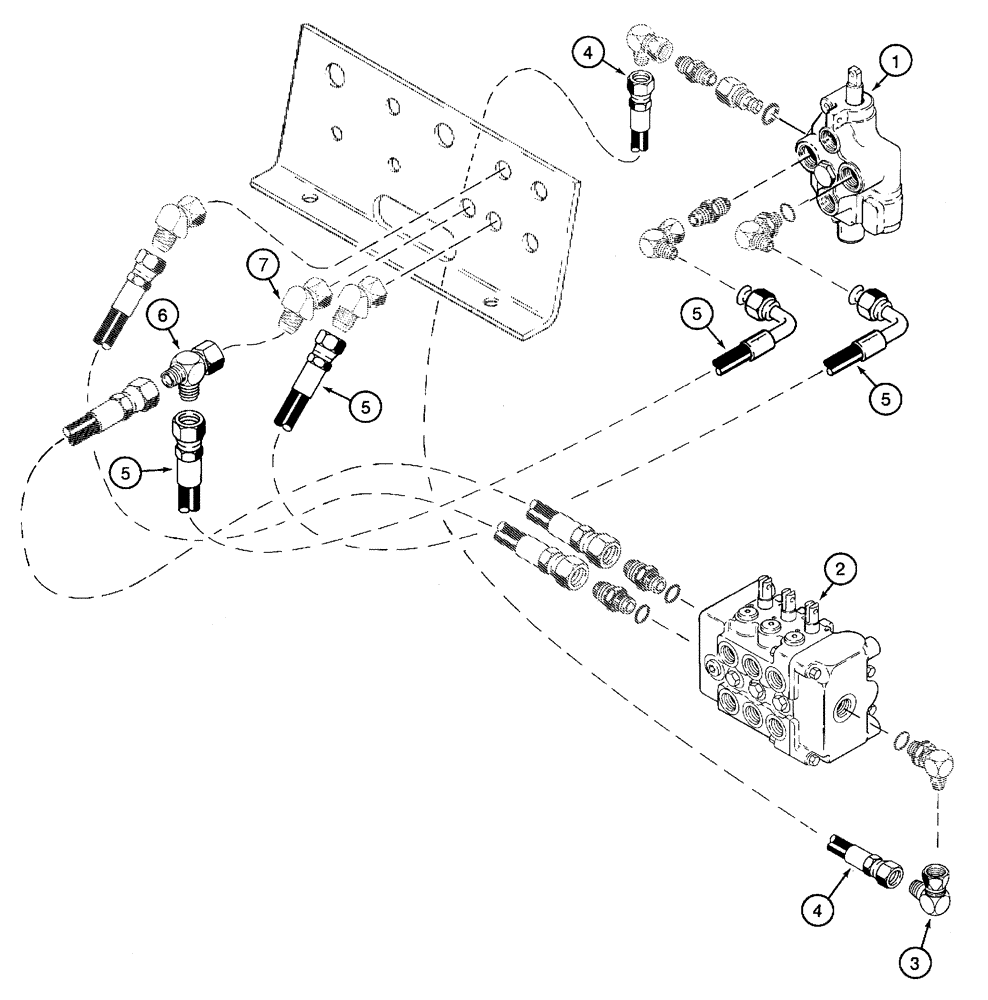

Запчасти Case 960 (08-65) - HYDRAULICS CRUMBER (08) - HYDRAULICS

For Quad Options

1шт.

1

H674465

VALVE

Auxiliary Control, Crumber, See Page(s) 8-215

1шт.

2

130806A1

VALVE

Plow, See Page(s) 8-189 - 8-195

1шт.

108676A1

ATTACHMENT

Hydraulic Crumber Attach, For Quad and Offset Trencher Kits, Includes 3 - 7, Ref 3 and 6 Are Not Used With The Offset Trencher Kit

1шт.

3

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

4

108421A1

HOSE ASSY.

955 mm, Power Beyond

1шт.

5

108664A1

HOSE ASSY.

770 mm, Supply and Return

2шт.

6

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Adj

1шт.

7

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

1-1/16 fl x sw

1шт.
