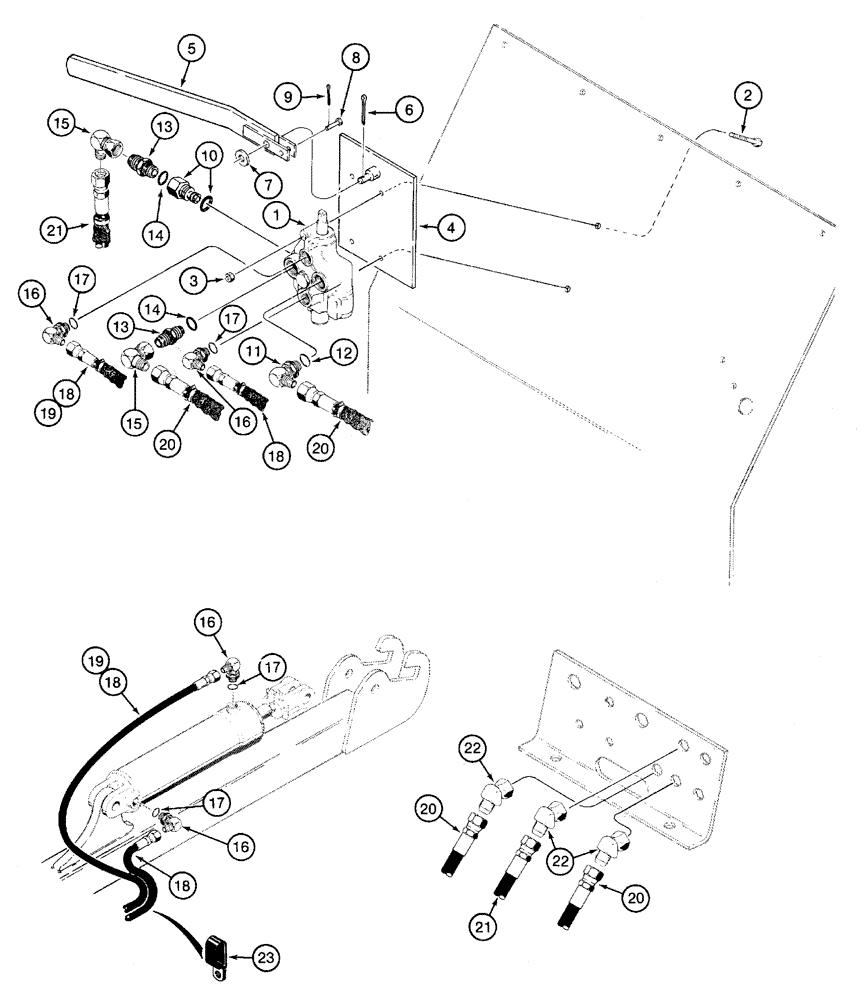

Запчасти Case 960 (08-64) - HYDRAULICS CRUMBER (08) - HYDRAULICS

For All Trenchers Except Quad

1шт.

1

H674465

VALVE

Crumber, See Page(s) 8-215

1шт.

2

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

3

232-4115

LOCK NUT,5/16"-18, GC

2шт.

4

105686A1

PLATE

1шт.

5

105548A1

HANDLE

Control Valve

1шт.

6

432-620

COTTER PIN,3/32" x 1 1/4"

3/32" x 1 1/4"

1шт.

7

H274894

WASHER

1шт.

8

427-3103

CLEVIS PIN,4.78mm OD x 26.19mm L

3/16 x 1-1/32, Hardened

1шт.

9

432-416

COTTER PIN,1/16" x 1"

1/16" x 1"

1шт.

10

H436154

FITTING,7/8" - 14

Includes 11 - 13, Power Beyond

1шт.

11

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj Or, Incl. 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

For All Trenchers Except Quad

1шт.

13

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes 14

2шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

2шт.

16

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Incl. 17

4шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

18

105751A1

HOSE

2950 mm, 4 and 6 ft Crumber Booms

2шт.

18

105751A1

HOSE

2950 mm, 5 ft Crumber Boom

1шт.

19

105753A1

HOSE

3250 mm, 5 ft Crumber Boom

1шт.

20

105799A1

HOSE

815 mm, Supply and Return

2шт.

21

105800A1

HOSE

450 mm, Power Beyond

1шт.

22

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

1-1/16 fl x sw

3шт.

23

L302731

CLAMP,19mm D Clamping Pipes

1шт.
