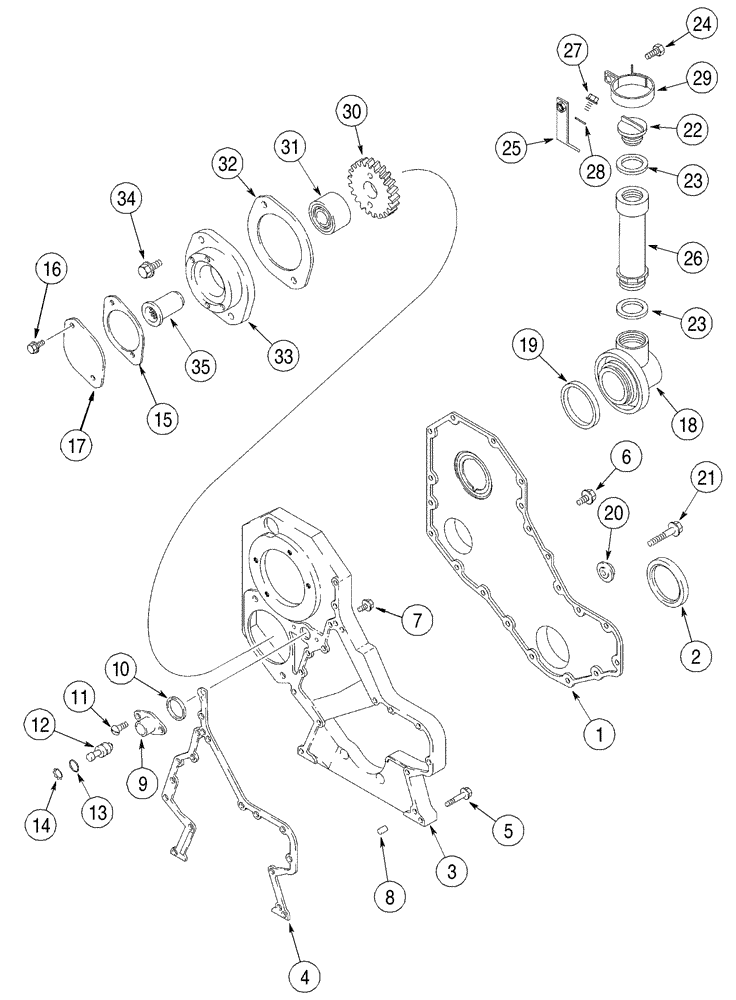

Запчасти Case 960 (02-08) - GEAR COVER, FRONT (02) - ENGINE

1

J935583

COVER

1шт.

2

NSS

NOT SOLD SEPARAT

Seal, See Page(s) 2-61

1шт.

3

J936257

HOUSING

1шт.

4

J938156

GASKET,0.79mm Thk

1шт.

5

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

10шт.

6

J924962

FLANGE BOLT

M8 x 16, External

11шт.

7

J926846

FLANGE BOLT

M8 x 20, Internal

5шт.

8

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

9

J919683

HOUSING

1шт.

10

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING

1шт.

11

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

12

J903924

PIN,18.87mm OD x 55mm L

1шт.

13

J913994

O-RING

1шт.

14

100-2587

SNAP RING,0.875", Int, #87

1шт.

15

J929751

GASKET

1шт.

16

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

17

J914868

COVER

1шт.

18

J921644

ADAPTER

1шт.

19

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

20

J912772

RETAINER

1шт.

21

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

1шт.

J823494

SEALANT

3 oz, Not Illustrated

1шт.

22

J901895

CAP

1шт.

23

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

2шт.

24

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

1шт.

25

J914497

SUPPORT

1шт.

26

J914738

TUBE,32 mm ID x 38 mm OD x 138 mm L

1шт.

27

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

1шт.

28

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

29

J914940

CLAMP

1шт.

30

J936136

GEAR

1шт.

31

J935644

BEARING, ROLLER

1шт.

32

J3004242

GASKET

1шт.

33

J936131

FLANGE

1шт.

34

854-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 10.9

M12 x 35; 10.9

2шт.

35

J935646

SHAFT

1шт.
