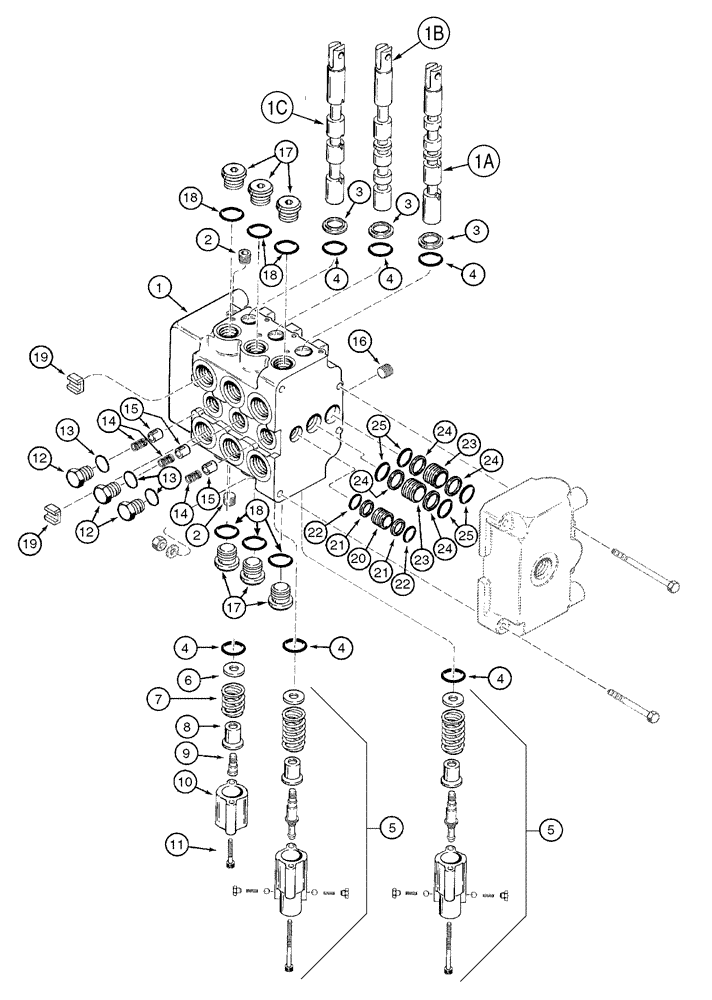

Запчасти Case 960 (08-57) - VALVE ASSY, CONTROL PLOW (08) - HYDRAULICS

130806A1

VALVE

Includes 8-189 - 8-195

1шт.

369952A1

VALVE

Lift, Swing and Steering, 3 Spool Outlet, Includes 1 - 16; No Longer Available As An Assembly, Order Components

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

1a

NSS

NOT SOLD SEPARAT

Spool, Float In

1шт.

1b

NSS

NOT SOLD SEPARAT

Spool, Float Out

1шт.

1c

NSS

NOT SOLD SEPARAT

Spool, Section

1шт.

2

86625138

PLUG,7/18" - 14

2шт.

3

H438926

WIPER SEAL

3шт.

4

H438030

O-RING

5/8 x 13/16

6шт.

5

101491A1

KIT

Float in Detent

1шт.

H438021

SET

Includes 6 - 11

1шт.

6

NSS

NOT SOLD SEPARAT

11/32 x 11/16 x 1/16, Washer

1шт.

7

N9539

TENSION SPRING

1шт.

8

NSS

NOT SOLD SEPARAT

Spacer

1шт.

9

NSS

NOT SOLD SEPARAT

Bolt

1шт.

10

NSS

NOT SOLD SEPARAT

Cap

1шт.

11

62-31024

SCREW,Hex Soc Hd, #10-32 x 1 1/2"

2шт.

H438024

SET

Load Check, Includes 12 - 15

3шт.

12

H438231

PLUG

Includes 237-6006

1шт.

14

NSS

NOT SOLD SEPARAT

Spring

1шт.

15

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

16

H438960

PLUG

Seal

1шт.

17

H438953

PLUG

Includes 18

6шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

101484A1

LARGE PLATE

PLATE, LARGE , Orifice

2шт.

20

H438029

TUBE

Small, Includes 21, 22

1шт.

21

H438044

GASKET

2шт.

22

238-6015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro

2шт.

23

H438028

TUBE

Large, Includes 24, 25

2шт.

24

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

2шт.

25

238-6211

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

2шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
