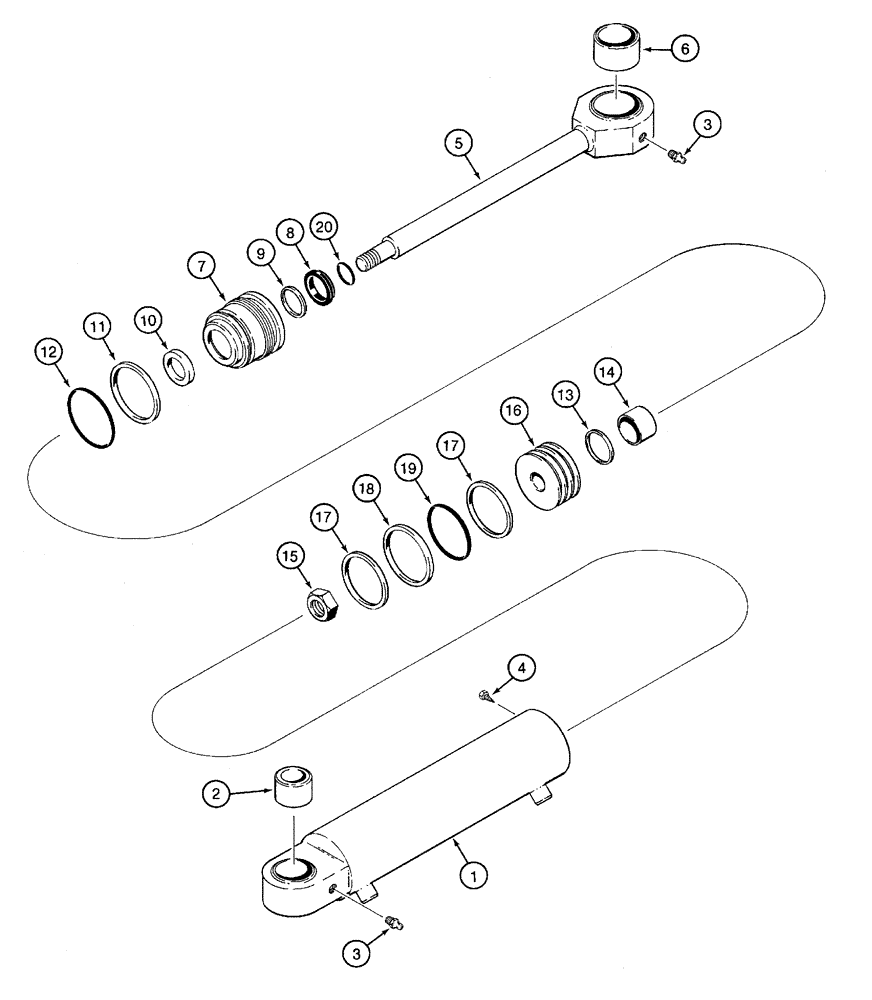

Запчасти Case 960 (08-55) - CYLINDER ASSY STEERING, PLOW BLADE (08) - HYDRAULICS

111620A2

CYLINDER

64 ID x 203 mm, Includes 1 - 20

1шт.

1

119353A2

TUBE

1шт.

2

119364A1

BUSHING

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

119375A1

SEAL KIT

Seal, Includes 4, 8 - 14, 17 - 20

1шт.

4

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

5

119357A2

ROD

1шт.

6

119366A1

BUSHING

1шт.

7

119360A1

HEAD

1шт.

8

NSS

NOT SOLD SEPARAT

Wiper, Piston Rod

1шт.

9

NSS

NOT SOLD SEPARAT

Seal

1шт.

10

NSS

NOT SOLD SEPARAT

Seal, Buffer

1шт.

11

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

12

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

13

NSS

NOT SOLD SEPARAT

Ring

1шт.

14

NSS

NOT SOLD SEPARAT

Ring, Wear

1шт.

15

231-41310

LOCK NUT,5/8"-11, GB

1шт.

16

119367A1

PISTON

1шт.

17

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

18

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

19

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

20

NSS

NOT SOLD SEPARAT

O-Ring, Piston Rod

1шт.
