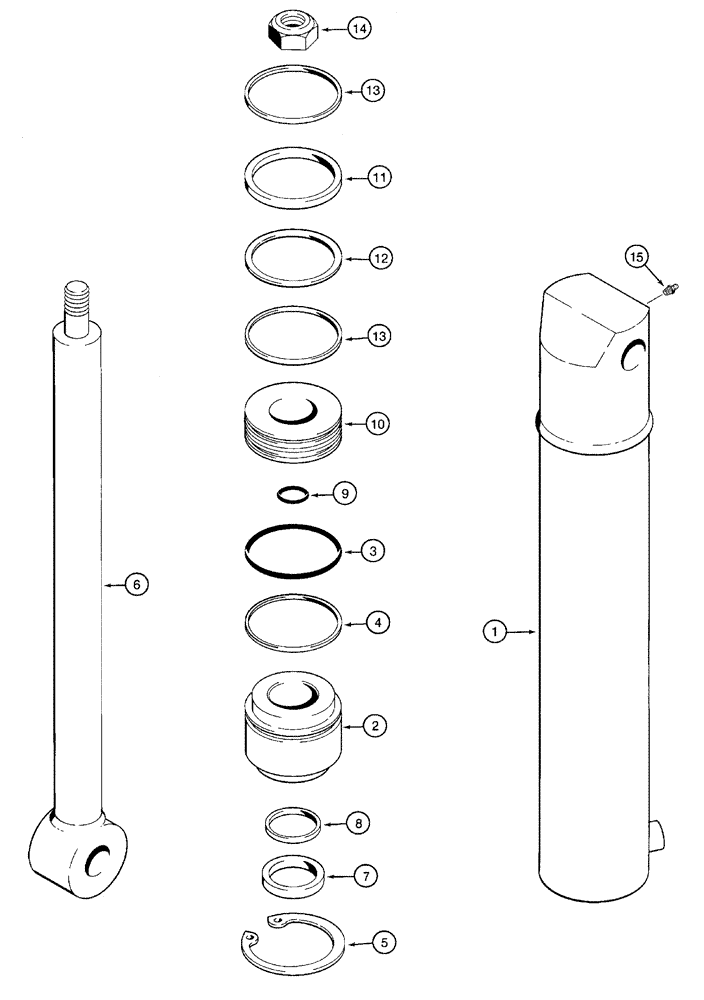

Запчасти Case 960 (08-53) - CYLINDER ASSY PLOW LIFT (08) - HYDRAULICS

H673790

CYLINDER

89 ID x 461 strk, Includes 1 - 15

1шт.

1

100435A1

TUBE

1шт.

2

100434A1

HEAD

1шт.

100437A1

SEAL KIT

Seal Repair, Includes 3 - 5, 7 - 9, 11 - 13

1шт.

3

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

4

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

5

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.

6

100436A1

ROD

1шт.

7

NSS

NOT SOLD SEPARAT

Wiper

1шт.

8

NSS

NOT SOLD SEPARAT

Seal

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring, Piston Rod

1шт.

10

100433A1

PISTON

1шт.

11

NSS

NOT SOLD SEPARAT

Seal, Piston

1шт.

12

NSS

NOT SOLD SEPARAT

Ring, Backup, Piston Seal

1шт.

13

NSS

NOT SOLD SEPARAT

Ring, Wear, Piston

2шт.

14

232-46314

LOCK NUT,7/8"-14, GC

1шт.

15

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.
