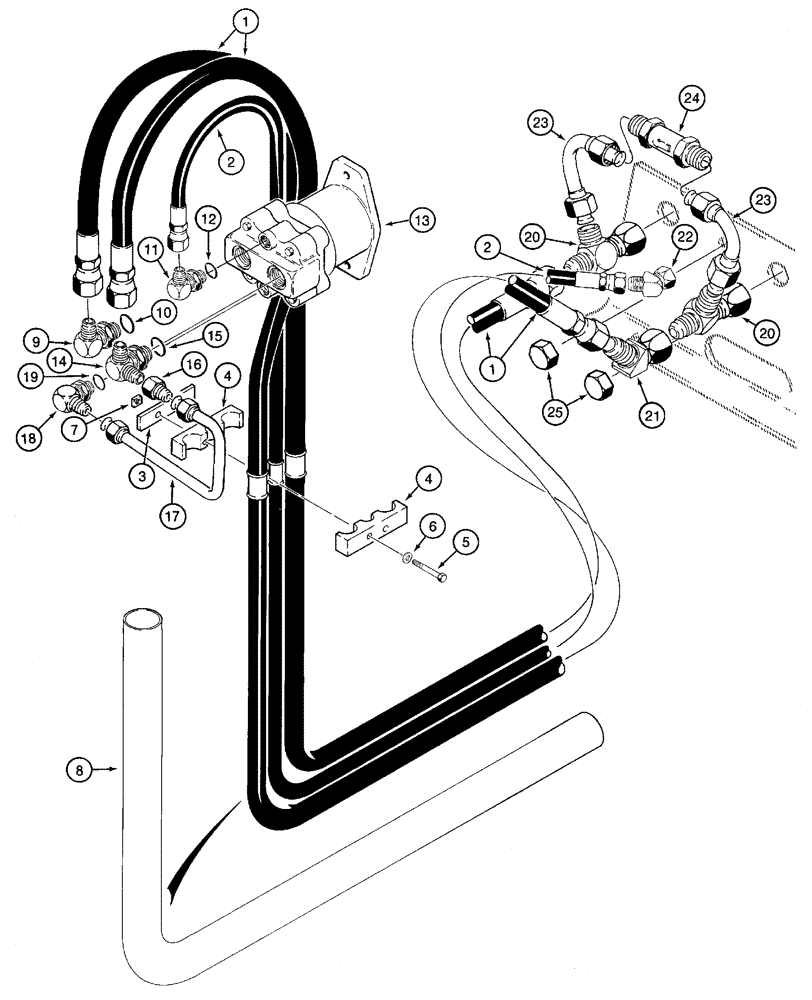

Запчасти Case 960 (08-52) - HYDRAULICS MOTOR, PLOW SUPPLY (08) - HYDRAULICS

1

H438196

HOSE ASSY.

3000 mm

2шт.

2

H438084

HOSE ASSY.

2921 mm

1шт.

3

H438204

BAR

Clamp

1шт.

4

H439256

BLOCK

2шт.

5

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

6

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

7

84899

SQUARE NUT,Sq, 3/8"-16, G2

2шт.

8

H438197

SLEEVE

Nylon

2шт.

9

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Includes 10

1шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

11

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

7/8 fl x 3/4 adj Or, Includes 12

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

H673911

HYDRAULIC MOTOR

Plow, See Page(s) 8-199

1шт.

14

103754A1

ELBOW,90 Degree, 1 5/16" ORB x 1 1/16"-12 JIC

Special, Includes 15

1шт.

15

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

16

H439323

FITTING

1шт.

17

102567A1

TUBE,12.7 mm OD, 167.8, 81.8 mm Length

1шт.

18

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 19

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

218-5412

TEE,37 Degree, 7/8"-14x1 1/16"-12, Fem Sw Runx1 1/16"-12 Br

2шт.

21

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

1-1/16 fl x sw

1шт.

22

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

1шт.

23

107330A1

TUBE,19.05 mm OD, 125.5, 97.1 mm Length

Tee to Check Valve

2шт.

24

L126503

VALVE, CHECK

1шт.

25

218-754

CAP,37 Degree, 9/16"-18

2шт.
