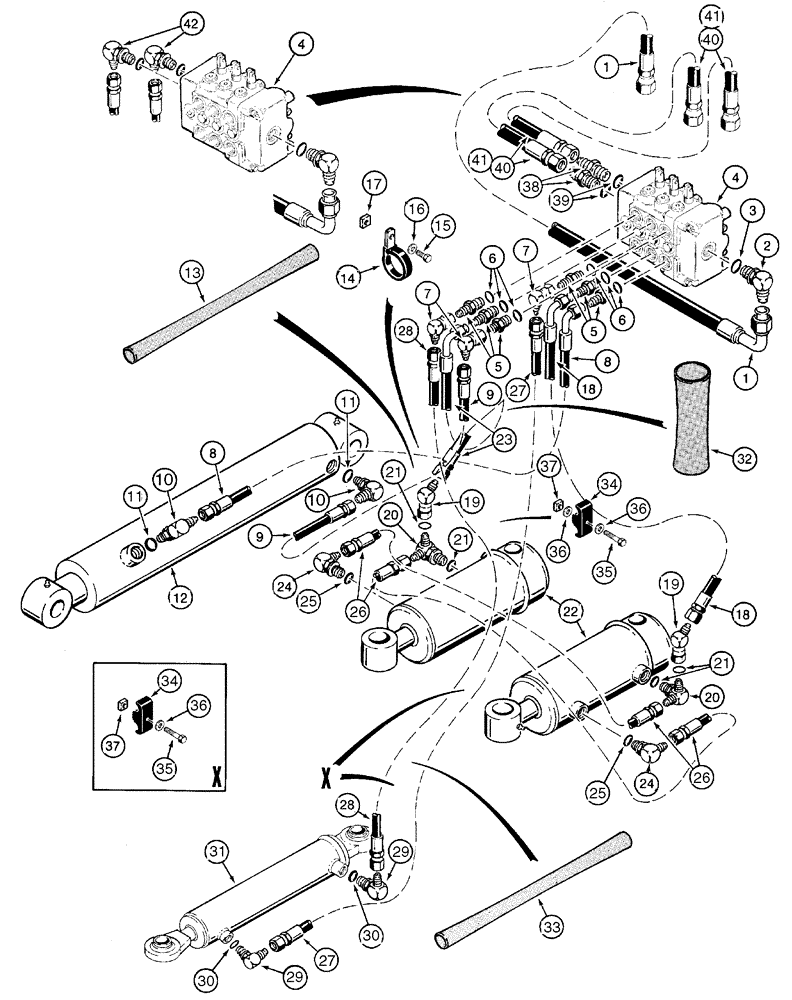

Запчасти Case 960 (08-51) - HYDRAULICS PLOW SUPPLY (08) - HYDRAULICS

1

H438246

HOSE ASSY.

660 mm

1шт.

2

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

1-1/16 fl x 7/8 Or, Includes 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

130806A1

VALVE

Plow, See Page(s) 8-189 - 8-195

1шт.

5

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

Includes 6

6шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

4шт.

8

H438089

HOSE ASSY.

1310 mm, Plow Lift Cylinder, Rod End

1шт.

9

H438081

HOSE ASSY.

1110 mm, Plow Lift Cylinder, Closed End

1шт.

10

218-5281

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16 fl x 7/8 Or, Includes 11

2шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

H673790

CYLINDER

89 ID x 461 strk, Plow Lift, See Page(s) 8-183

1шт.

13

H438500

SLEEVE

1шт.

14

515-23444

CLAMP,1 3/4", Insul, 3/8" Bolt

1-3/4, P-Type

1шт.

15

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

16

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

17

84899

SQUARE NUT,Sq, 3/8"-16, G2

1шт.

18

H438000

HOSE ASSY.

597 mm, Swing Cylinder, Closed End

1шт.

19

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

2шт.

20

H428623

TEE

Special, Includes 21

2шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

22

H673704

CYLINDER,101.6 mm ID x 327 mm L

102 ID x 152 mm, Plow Swing, See Page(s) 8-185

2шт.

23

H438201

HOSE ASSY.

1136 mm, Swing Cylinder, Closed End

1шт.

24

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Incl. 25

2шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

26

H435080

HOSE ASSY.

762 mm, Swing Cylinder

2шт.

27

H438198

HOSE ASSY.

2620 mm, Plow Steering Cylinder, Rod End

1шт.

28

H438199

HOSE ASSY.

2490 mm, Plow Blade Steering Cylinder, Closed End

1шт.

29

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or, Includes 30

2шт.

31

111620A2

CYLINDER

64 ID x 203 mm, Plow Blade Steering, See Page(s) 8-187

1шт.

32

H438203

SLEEVE

1шт.

33

D131789

SLEEVE

1шт.

34

D120679

CLAMP,Tube, 1/2"

3шт.

35

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

36

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

37

84899

SQUARE NUT,Sq, 3/8"-16, G2

3шт.

38

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x Or, Includes 39

2шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

40

H438087

HOSE ASSY.

2шт.

41

106519A1

HOSE

660 mm, Used On Quad Units

2шт.

42

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

2шт.

43

H165340

HYDRAULIC HOSE,6.35 mm ID x 304.80 mm, SAE 100R1

Extension, Not Illustrated

2шт.

30

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
