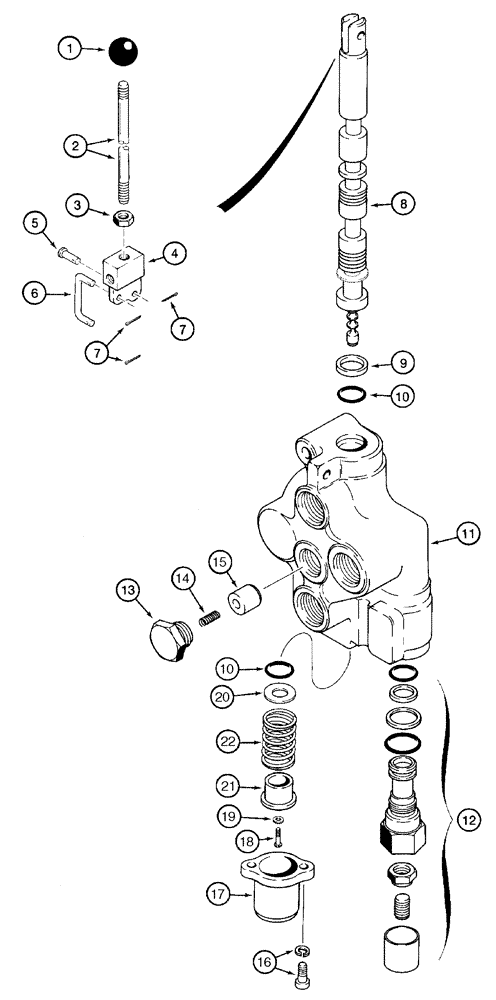

Запчасти Case 960 (08-49) - VALVE, CONTROL REMOTE HYDRAULIC (08) - HYDRAULICS

107081A1

VALVE

Remote Hydraulic, Hydra-Borer Or Hydraulic Tool, Includes 1 - 22

1шт.

1

A14051

GRIP

1шт.

2

H438923

HANDLE

1шт.

3

425-146

JAM NUT,3/8" - 16, Gr 5

1шт.

4

H438924

BLOCK

Pivot

1шт.

5

427-4077

CLEVIS PIN,1/4" x .770"

Hardened

1шт.

6

H438042

ARM

1шт.

7

432-412

COTTER PIN,1/16" x 3/4"

3шт.

8

NSS

NOT SOLD SEPARAT

Spool, Control Valve, Order 107081A1

1шт.

9

H438926

WIPER SEAL

1шт.

10

H438030

O-RING

5/8 x 13/16

2шт.

11

NSS

NOT SOLD SEPARAT

Housing, Control Valve, Order 107081A1

1шт.

12

H438925

VALVE, PRESSURE RELI

EF

1шт.

H673572

KIT

Includes 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

Plug, Includes O-Ring

1шт.

14

NSS

NOT SOLD SEPARAT

Spring

1шт.

15

NSS

NOT SOLD SEPARAT

Poppet, Valve

1шт.

H674816

KIT

Centering Spring, Includes 16 - 22

1шт.

16

221655A1

CAPTIVE WASHER SCREW,Phillips Drive, Round HD, #12 - 24 x 1/2"

Includes Washer

2шт.

17

N9528

CAP

1шт.

18

62-7108

HEX SOC SCREW,Btn Hd, #10 - 32 x 1/2"

1шт.

19

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

20

492-11010

LOCK WASHER,#10

1шт.

21

N9529

SEAT

1шт.

22

N9539

TENSION SPRING

Centering

1шт.
