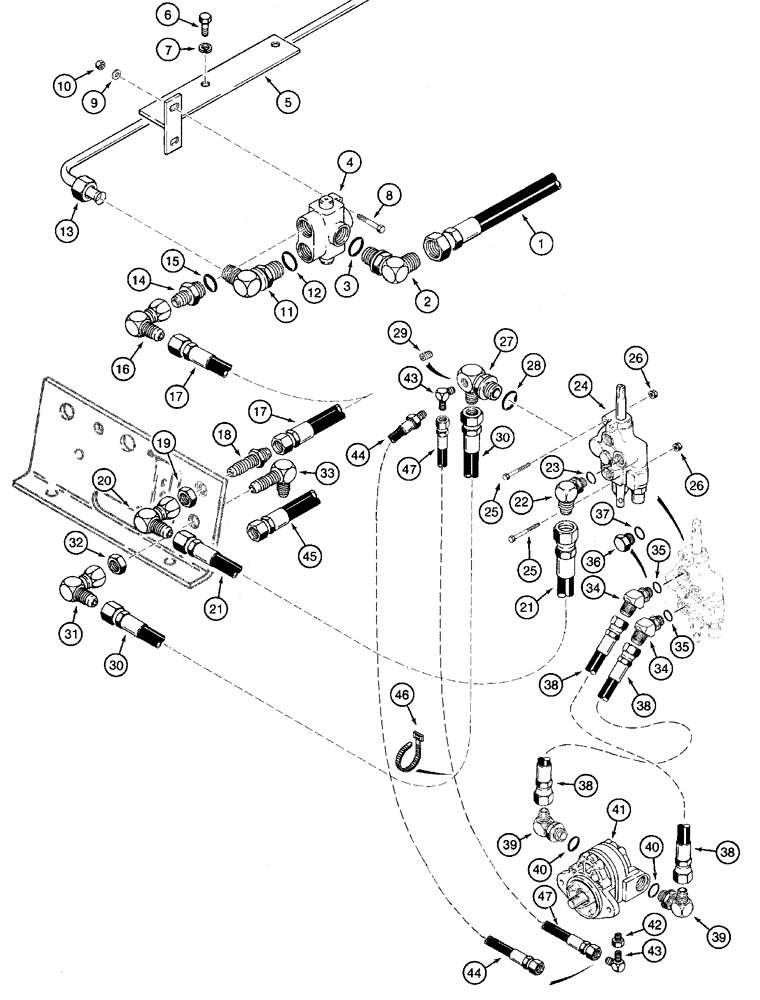

Запчасти Case 960 (08-47) - HYDRAULICS HYDRA-BORER (08) - HYDRAULICS

1

H377754

HOSE,0.75" ID x 23.62", SAE 100R2, SAE 100R3

Selector Valve, See Page(s) 8-9

1шт.

2

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Includes 3

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

4

L55038

VALVE

Selector, Hydra-Borer and Backhoe, See Page(s) 8-169

1шт.

5

H672506

BRACKET

Use Existing Hardware

1шт.

6

614-14030

BOLT,Hex, M14 x 2 x 30mm, Cl 8.8, Full Thd

2шт.

7

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

2шт.

8

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

2шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

10

230-4216

LOCK NUT,3/8"-16, GA

2шт.

11

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Includes 12

1шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

13

H672492

TUBE,19.05 mm OD x 1700, 90 mm L

Backhoe Supply Line, From Selector Valve

1шт.

14

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 15

1шт.

15

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

16

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

17

H377754

HOSE,0.75" ID x 23.62", SAE 100R2, SAE 100R3

1шт.

18

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1-1/16 fl x bkhd fl

1шт.

19

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

20

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

21

D55773

HOSE

521 mm

1шт.

22

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

1-1/16 fl x 7/8 Or, Includes 23

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

24

107081A1

VALVE

Remote Hydraulic, Hydra-Borer Or Hydraulic Tool, See Page(s) 8-165

1шт.

25

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

27

H438268

ADAPTER

Special, Outlet, Includes 28

1шт.

28

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

29

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Installed In Ref 27 When Hydra-Borer Is Not Used

1шт.

30

H282863

HYDRAULIC HOSE,19.05 mm ID x 762.00 mm, SAE 100R1

Return

1шт.

31

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

32

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

33

218-696

ELBOW,90 Degree Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

34

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. 35

2шт.

35

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

36

86512512

PLUG,7/8" - 14 ORB

Models without Hydra-Borer, Incl. 37

2шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

38

D20358

HOSE

1168 mm

2шт.

39

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

7/8 fl x adj Or, Incl. 40

2шт.

40

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

41

H654814

MOTOR

Hydra-Borer, See Page(s) 8-163

1шт.

42

221-84

REDUCER,Hex, 1/4" x 1/8" NPT

1/4 male x 1/8 fem, Pipe

1шт.

43

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

9/16 fl x 1/4 PT

2шт.

44

H209023

HOSE ASSY.

1499 mm, Hydra-Borer With Quad

1шт.

45

130946A1

HOSE

788 mm, Auxiliary Hydraulic Return

1шт.

46

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in

1шт.

47

H438496

HOSE

1шт.
