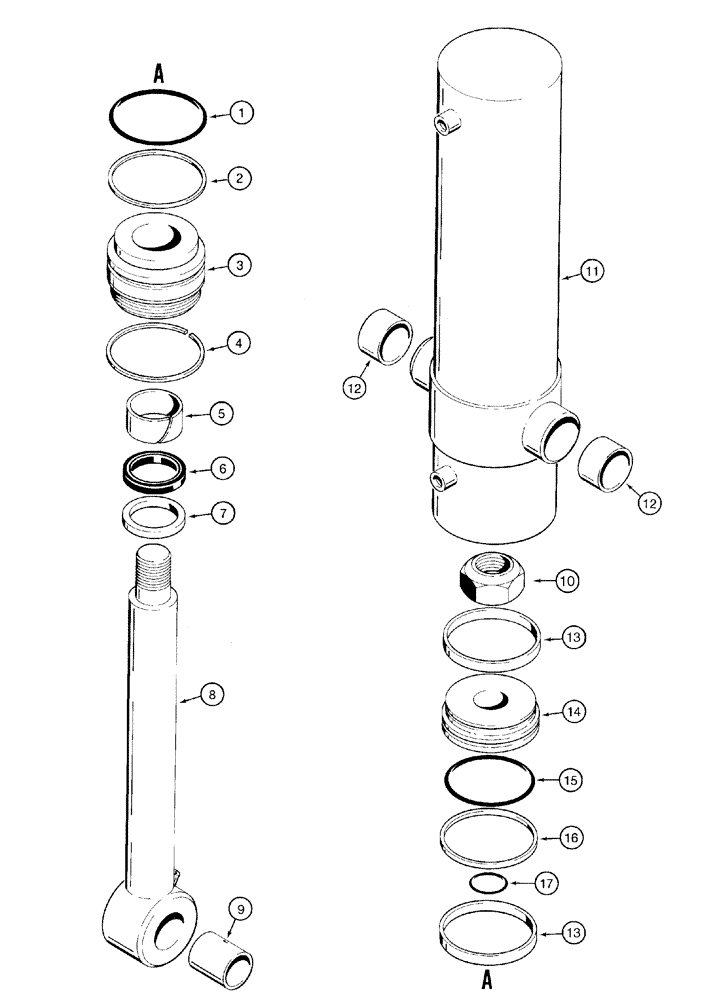

Запчасти Case 960 (08-46) - CYLINDER ASSY TRENCHER BOOM LIFT (08) - HYDRAULICS

221702A1

CYLINDER

102 ID x 419 mm, Trencher Boom Lift, Includes 1 - 17

1шт.

H674686

GASKET KIT

Seal Repair, Includes 1, 2, 4 - 7, 13, 15 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

2

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

3

H438437

HEAD

Piston

1шт.

4

NSS

NOT SOLD SEPARAT

Lock, Gland, Nylon

1шт.

5

NSS

NOT SOLD SEPARAT

Ring, Wear, Gland

1шт.

6

NSS

NOT SOLD SEPARAT

Seal, Gland, U-Cup

1шт.

7

NSS

NOT SOLD SEPARAT

Wiper, Piston Rod

1шт.

235932A1

SHAFT

Piston, Includes 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

9

H438669

BUSHING,38.3mm ID x 47.75mm OD x 57.15mm L

Piston Rod

1шт.

10

232-24020

LOCK NUT,1 1/4"-12, GB

1шт.

11

H438435

SLEEVE CYLINDER

Includes 12

1шт.

12

105814A1

BUSHING

2шт.

13

NSS

NOT SOLD SEPARAT

Ring, Wear, Piston

2шт.

14

H438434

PISTON

1шт.

15

NSS

NOT SOLD SEPARAT

O-Ring, Piston, Outer

1шт.

16

NSS

NOT SOLD SEPARAT

Seal, Piston, Outer

1шт.

17

NSS

NOT SOLD SEPARAT

O-Ring, Piston, Inner

1шт.
