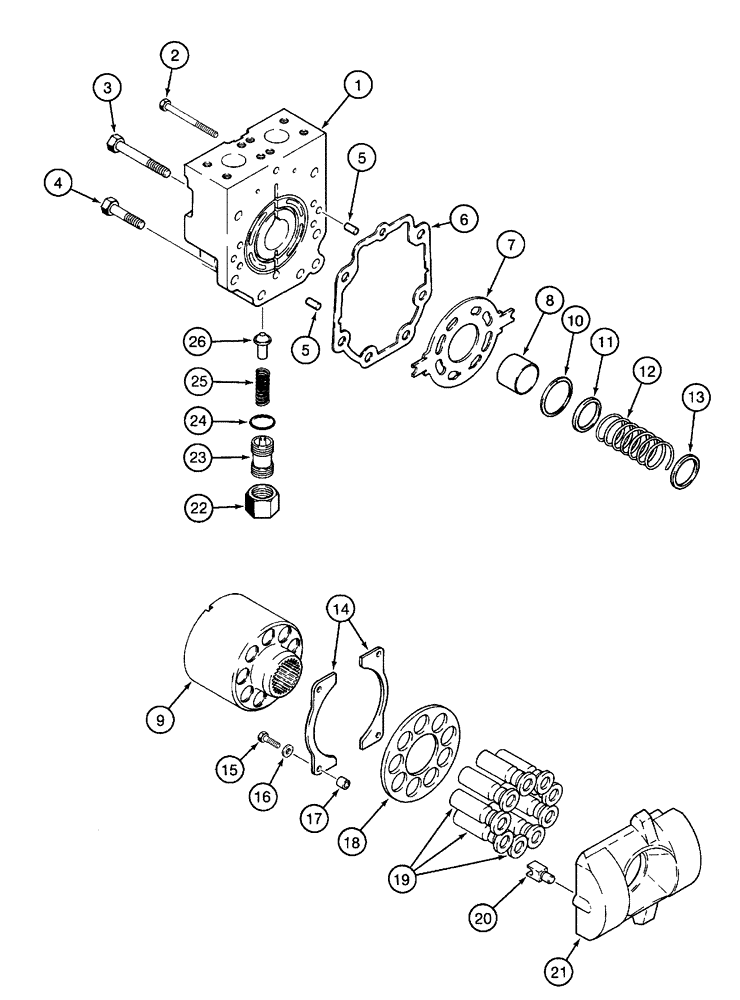

Запчасти Case 960 (08-44) - MOTOR ASSY TRENCHER DRIVE (08) - HYDRAULICS

H674755

MOTOR

Includes 8-137 - 8-149, For Major Pump Overhaul, Order 244090A1

1шт.

244090A1

SEAL KIT

Seal Repair

1шт.

1

106571A2

PLUG

End

1шт.

2

828-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

M8 x 70; 10.9

1шт.

3

828-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9

4шт.

4

628-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

5

F23124

AXLE PIN

Locating

2шт.

6

106541A1

GASKET

1шт.

7

106529A1

LARGE PLATE

PLATE, LARGE

1шт.

8

105667A1

BEARING

1шт.

106522A1

BLOCK

Cylinder, Includes 9 - 13

1шт.

9

NSS

NOT SOLD SEPARAT

Block, Cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.

11

NSS

NOT SOLD SEPARAT

Retainer, Spring

1шт.

12

NSS

NOT SOLD SEPARAT

Spring, Cylinder Block

1шт.

13

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

14

106525A1

BEARING

2шт.

15

106528A1

SCREW

4шт.

16

106527A1

WASHER

4шт.

17

106526A2

SPACER

4шт.

18

106524A1

GUIDE

1шт.

19

106523A1

PISTON

Cylinder Block

9шт.

20

196507A1

PIVOT

Swash Plate, Used With, Ref 21

1шт.

21

196506A1

PLATE

Also Order, Ref 20

1шт.

22

106553A1

SPECIAL NUT

Relief Valve Plug

1шт.

23

106550A1

PLUG

Charge Relief Valve, Includes 24

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

25

106551A1

SPRING

Poppet

1шт.

26

106552A1

VALVE

Charge Relief Valve

1шт.
