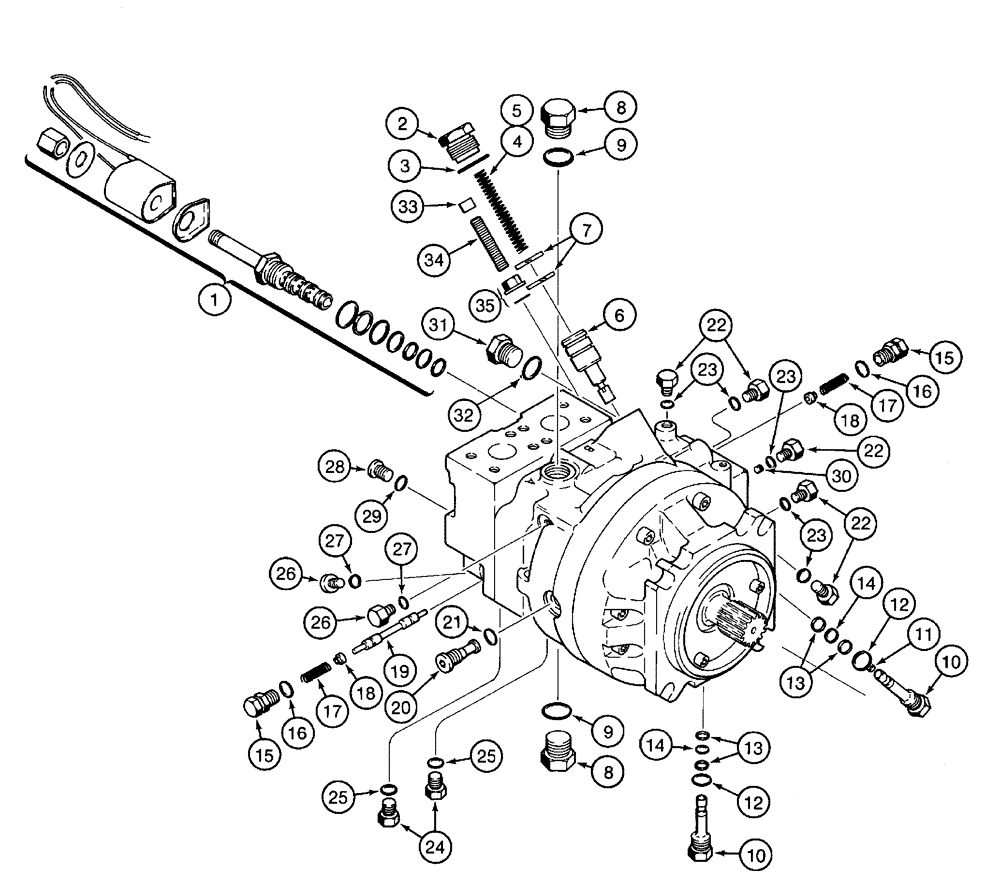

Запчасти Case 960 (08-43) - MOTOR ASSY TRENCHER DRIVE (08) - HYDRAULICS

H674755

MOTOR

Includes 8-137 - 8-149

1шт.

1

106558A2

VALVE

1шт.

2

106536A1

PLUG

Servo Piston, Includes 3

2шт.

3

244085A1

O-RING

2шт.

4

106537A1

SPRING

Upper

1шт.

5

106540A1

SPRING

Lower

1шт.

106538A1

PISTON

Servo, Includes 6, 7

2шт.

6

NSS

NOT SOLD SEPARAT

Piston, Servo

1шт.

7

106539A1

SEALING RING

Servo Piston

2шт.

8

86625138

PLUG,7/18" - 14

Includes 9

2шт.

9

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

10

106570A1

PLUG

Orifice

2шт.

11

106567A1

SCREEN

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

13

106569A2

RING, SNAP

RING SNAP

4шт.

14

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

15

106549A1

PLUG

Shuttle Valve Spool

2шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

17

106548A1

SPRING

Shuttle Spool

2шт.

18

106547A1

GUIDE

Spring

2шт.

19

106546A1

SPOOL

Shuttle Valve

1шт.

20

106531A1

PIN

Special, Housing

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

22

9672438

PLUG,7/16" - 20 ORB

Incl. 23

5шт.

23

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

24

76349

PLUG,9/16" - 18 ORB

Incl. 25

2шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

278548

PLUG,Hex, 7/16"-20 ORB

Incl 27

2шт.

27

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

28

9625178

PLUG,9/16" - 18 ORB

Incl. 29

1шт.

29

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

30

105703A1

PLUG

Orifice, Special

1шт.

31

214389

PLUG,3/4" - 16 ORB

Includes Ref. 32

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

33

106533A1

CAP

Set Screw

2шт.

34

244084A1

SET SCREW

Special

2шт.

35

106535A1

SPECIAL NUT

Includes Seal

2шт.
