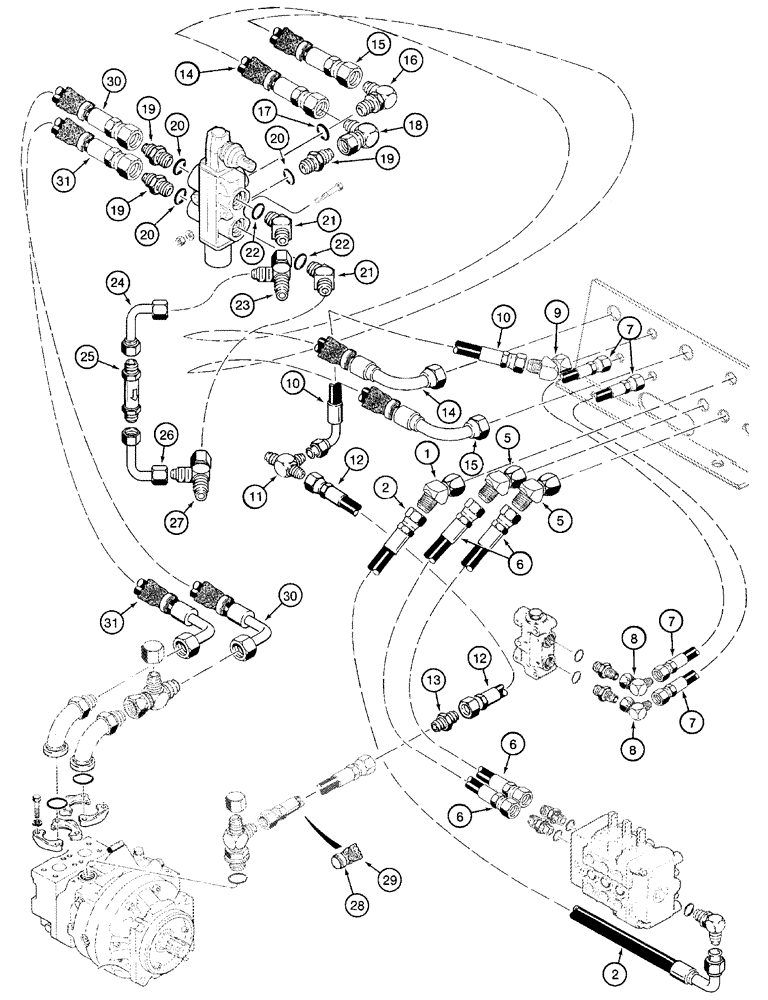

Запчасти Case 960 (08-42) - HYDRAULICS QUAD, REVERSED (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
218-5175
ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC
1-1/16 fl x sw
1шт.
2
H438246
HOSE ASSY.
660 mm
1шт.
3
218-980
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw
Not Illustrated
4шт.
4
109184A1
HOSE
Not Illustrated
6шт.
5
218-5175
ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC
1-1/16 fl x sw
2шт.
6
106519A1
HOSE
660 mm
2шт.
7
108930A1
HOSE
940 mm
2шт.
8
218-980
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw
2шт.
9
218-5174
ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC
1шт.
10
H439398
HOSE
350 mm
1шт.
11
218-595
TEE,7/8"-14, 37 Degree
7/8 x 7/8 x 7/8
1шт.
12
H439398
HOSE
350 mm
1шт.
13
218-736
UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree
1шт.
14
107210A1
HOSE
1080 mm
1шт.
15
107209A1
HOSE
1475 mm
1шт.
16
218-5108
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
Incl. 17
1шт.
17
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
18
218-5231
ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw
1шт.
19
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
Incl. 20
3шт.
20
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
21
218-5138
ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
1-1/16-12 fl x Or, Includes 22
2шт.
22
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
23
218-5221
TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run
Adj
1шт.
24
107330A1
TUBE,19.05 mm OD, 125.5, 97.1 mm Length
1шт.
25
L126503
VALVE, CHECK
1шт.
26
107331A1
TUBE,19.05 mm OD, 288.9, 90.7 mm Length
1шт.
27
218-5221
TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run
Adj
1шт.
28
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP , 15 in
2шт.
29
D131814
SLEEVE
1шт.
30
107210A1
HOSE
1080 mm
1шт.
31
107209A1
HOSE
1475 mm
1шт.
Выбрано товаров: 31
