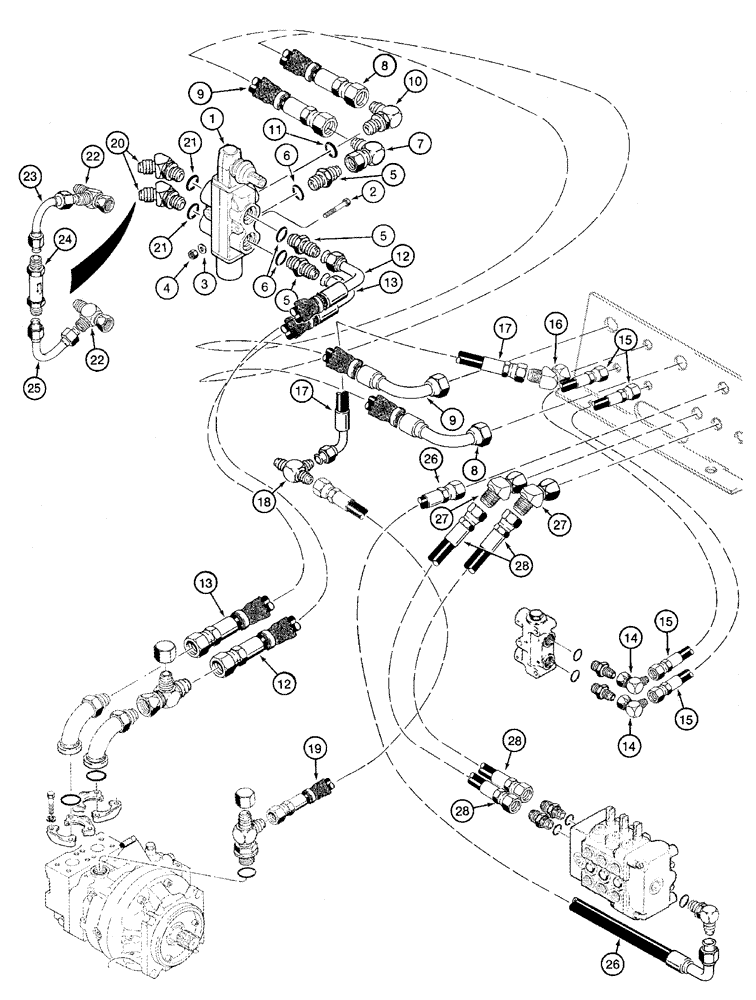

Запчасти Case 960 (08-41) - HYDRAULICS QUAD, STANDARD (08) - HYDRAULICS

1

104946A1

VALVE

Selector, Trencher/Plow, See Page(s) 8-197

1шт.

2

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

4

232-4116

NUT,3/8"-16, GC

2шт.

5

218-5050

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 6

3шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

7

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

1-5/16 fl x sw

1шт.

8

107209A1

HOSE

1475 mm

1шт.

9

107210A1

HOSE

1080 mm

1шт.

10

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Includes 11

1шт.

11

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

12

107211A1

HOSE

585 mm (23 in)

1шт.

13

107212A1

HOSE

405 mm (16 in)

1шт.

14

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

2шт.

15

108930A1

HOSE

940 mm, Attachment, Lower/Raise

2шт.

16

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

1шт.

17

H439398

HOSE

350 mm

1шт.

18

218-595

TEE,7/8"-14, 37 Degree

7/8 x 7/8 x 7/8

1шт.

19

D131814

SLEEVE

1шт.

20

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1-1/16-12 fl x Or, Includes 21

2шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

22

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

Adj

2шт.

23

107330A1

TUBE,19.05 mm OD, 125.5, 97.1 mm Length

1шт.

24

L126503

VALVE, CHECK

1шт.

25

107331A1

TUBE,19.05 mm OD, 288.9, 90.7 mm Length

1шт.

26

H438246

HOSE ASSY.

660 mm

1шт.

27

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

1-1/16 fl x sw

2шт.

28

106519A1

HOSE

660 mm

2шт.
