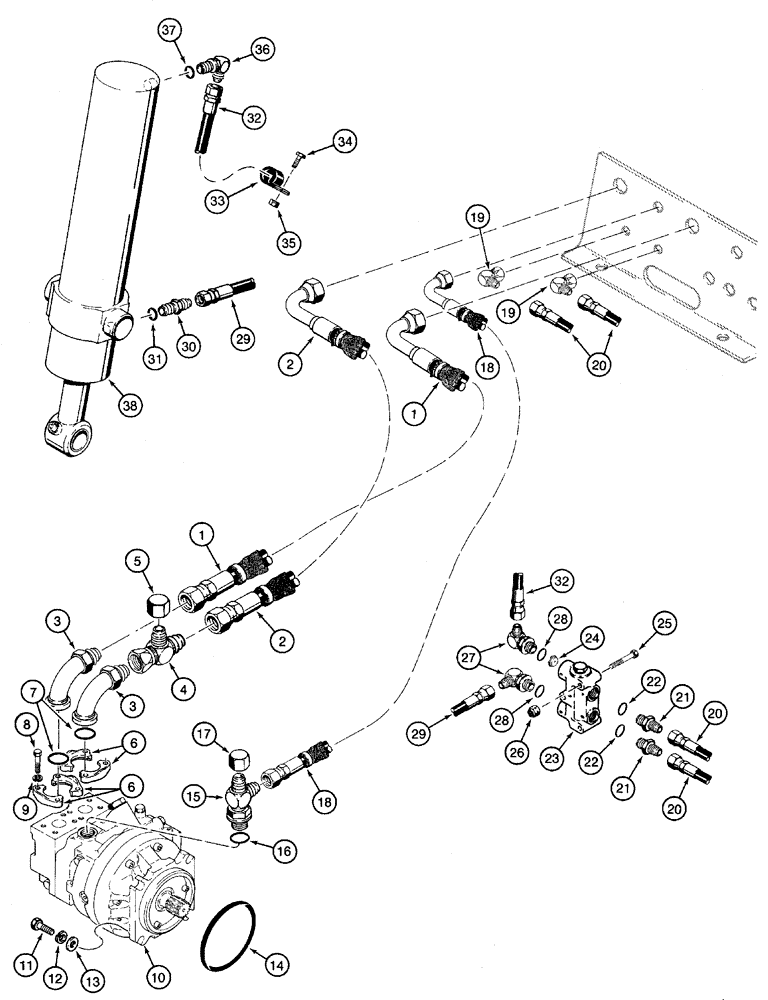

Запчасти Case 960 (08-39) - HYDRAULICS TRENCHER DRIVE AND BOOM LIFT (08) - HYDRAULICS

Centerline Trencher

1шт.

1

H439284

HOSE

935 mm (36-13/16 in)

1шт.

2

H439285

HOSE

780 mm (30-11/16 in)

1шт.

3

H439280

ELBOW

Special

2шт.

4

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

1шт.

5

218-758

CAP,37 Degree, 1 5/16"-12

1шт.

6

S97224

CLAMP

1 in, Split

4шт.

7

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

2шт.

8

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

8шт.

9

492-11044

LOCK WASHER,7/16"

8шт.

10

H674755

MOTOR

Trencher Drive, Two Speed, See Page(s) 8-137 - 8-149

1шт.

11

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

13

H274894

WASHER

4шт.

14

238-5049

O-RING,0.07" Thk x 4.986" ID, -49, Cl 5, 75 Duro

1шт.

15

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Includes 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

218-756

CAP,37 Degree, 7/8"-14

1шт.

18

H437994

HOSE ASSY.

1143 mm (45 in), Case Drain

1шт.

19

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

2шт.

20

H438959

HOSE

762 mm (30 in)

2шт.

21

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

Includes 22

2шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Centerline Trencher

1шт.

23

H672547

VALVE

Lockout Valve, See Page(s) 5-31, Includes 24

1шт.

24

H270603

ORIFICE

See Page(s) 5-31

1шт.

25

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

27

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Incl. 28

2шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

29

D81836

HOSE

406 mm (16 in)

1шт.

30

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 31

1шт.

32

109641A1

HOSE

508 mm (20 in)

1шт.

33

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

34

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

35

231-5146

FLANGE NUT,3/8"-16

1шт.

36

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes 37

1шт.

38

221702A1

CYLINDER

102 ID x 419 mm, Trencher Boom Lift, See Page(s) 8-151

1шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

37

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
