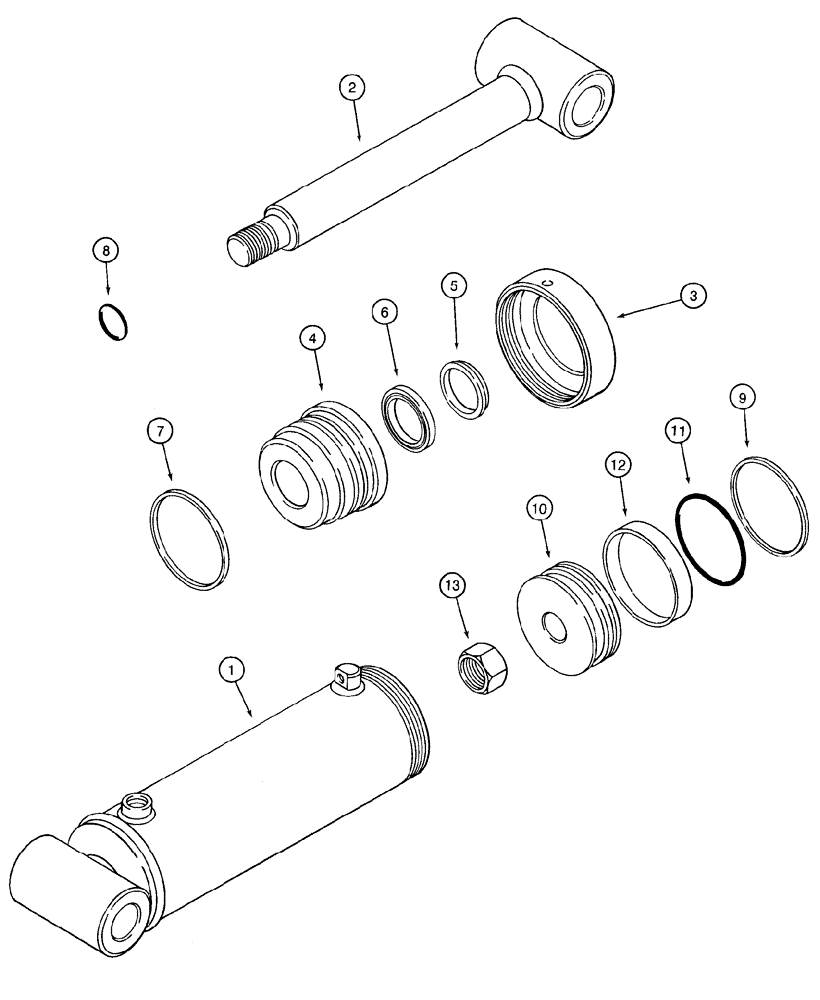

Запчасти Case 960 (08-36) - CYLINDER ASSY BACKFILL BLADE ANGLE (08) - HYDRAULICS

H670935

CYLINDER

89 ID x 203 strk, Backfill Blade Angle, Consists Of 1 - 13

2шт.

1

N13626

TUBE

1шт.

2

N13627

ROD

1шт.

3

H242545

COLLAR

1шт.

4

H254763

GLAND

1шт.

N13628

SEAL KIT

Seal, Consists Of 5 - 9, 11 - 13

1шт.

5

H222935

WIPER SEAL

Piston Rod

1шт.

6

H247809

SEAL ASSY.

Piston Rod

1шт.

7

238-5236

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

8

238-5020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 5, 75 Duro

1шт.

9

N13629

SEAL

1шт.

10

N13625

PISTON

1шт.

11

238-5151

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

1шт.

12

N13630

STRIP

1шт.

13

230-46116

LOCK NUT,1"-14, GA

1 NF

1шт.
