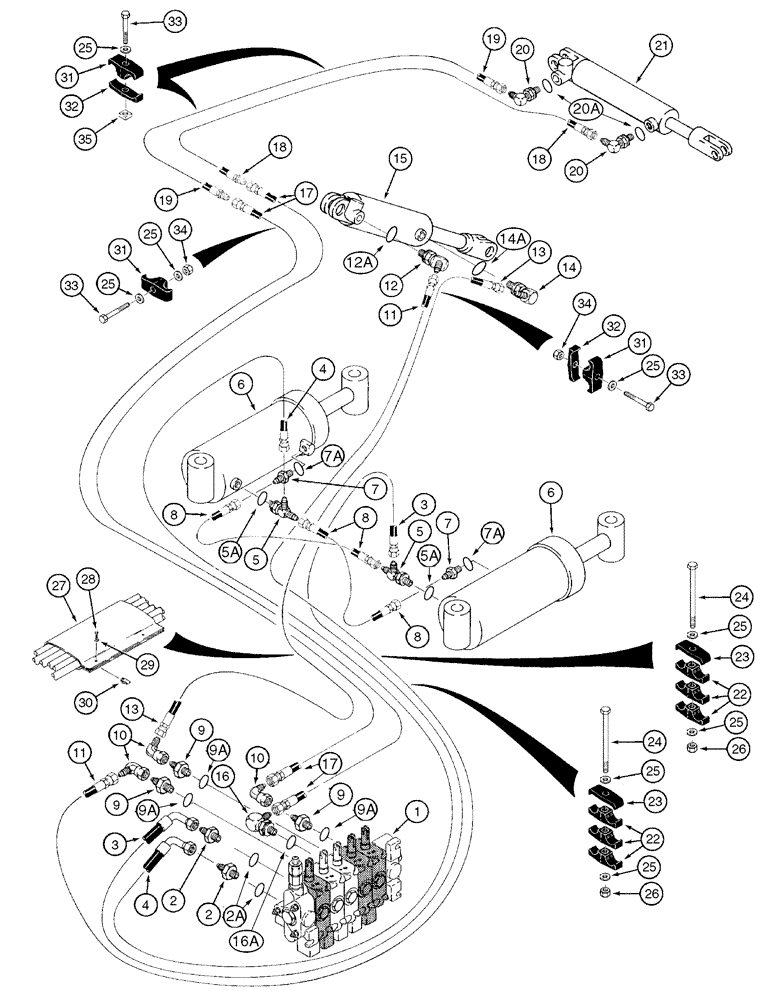

Запчасти Case 960 (08-35) - HYDRAULICS BACKFILL BLADE (08) - HYDRAULICS

1

H674793

VALVE

Attachment, See Page(s) 8-31 - 8-41

1шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

Includes 2A

2шт.

2a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

H433714

HOSE

2750 mm (108-1/4 in)

1шт.

4

H433714

HOSE

2750 mm (108-1/4 in)

1шт.

5

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes 5A

2шт.

6

H670935

CYLINDER

89 ID x 203 strk, Backfill Blade Angle, See Page(s) 8-111

2шт.

7

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 7A

2шт.

8

S77121

HOSE

508 mm (20 in)

2шт.

9

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

Includes 9A

3шт.

9a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3шт.

11

H350926

HOSE,0.25" ID x 110.00", SAE 100R1A

1шт.

12

218-5148

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Includes 12A

1шт.

12a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

H379982

HOSE,0.25" ID x 122.05", SAE 100R1A

1шт.

14

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Incl. 14A

1шт.

14a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

101644A1

CYLINDER

76 ID x 203 strk, Backfill Blade Lift, See Page(s) 8-113

1шт.

16

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Incl. 16A

1шт.

16a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

H433716

HOSE

2650 mm (104 in)

2шт.

18

H256503

HOSE ASSY.

1422 mm (56 in)

1шт.

19

H171017

HYDRAULIC HOSE,6.35 mm ID x 1016.00 mm, SAE 100R1

1шт.

20

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or, Includes 20A

2шт.

21

101645A1

CYLINDER

64 ID x 203 strk, Backfill Blade Tilt, See Page(s) 8-117

1шт.

22

D120679

CLAMP,Tube, 1/2"

6шт.

23

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

2шт.

24

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3/8 x 4

2шт.

25

496-21041

WASHER,13/32" x 13/16" x .089", HDN

9шт.

26

230-4216

LOCK NUT,3/8"-16, GA

2шт.

27

H374678

FLAP

1шт.

28

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

29

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

2шт.

30

H346650

NUT

2шт.

31

D120679

CLAMP,Tube, 1/2"

4шт.

32

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

3шт.

33

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

34

230-4216

LOCK NUT,3/8"-16, GA

2шт.

35

84899

SQUARE NUT,Sq, 3/8"-16, G2

2шт.

5a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
