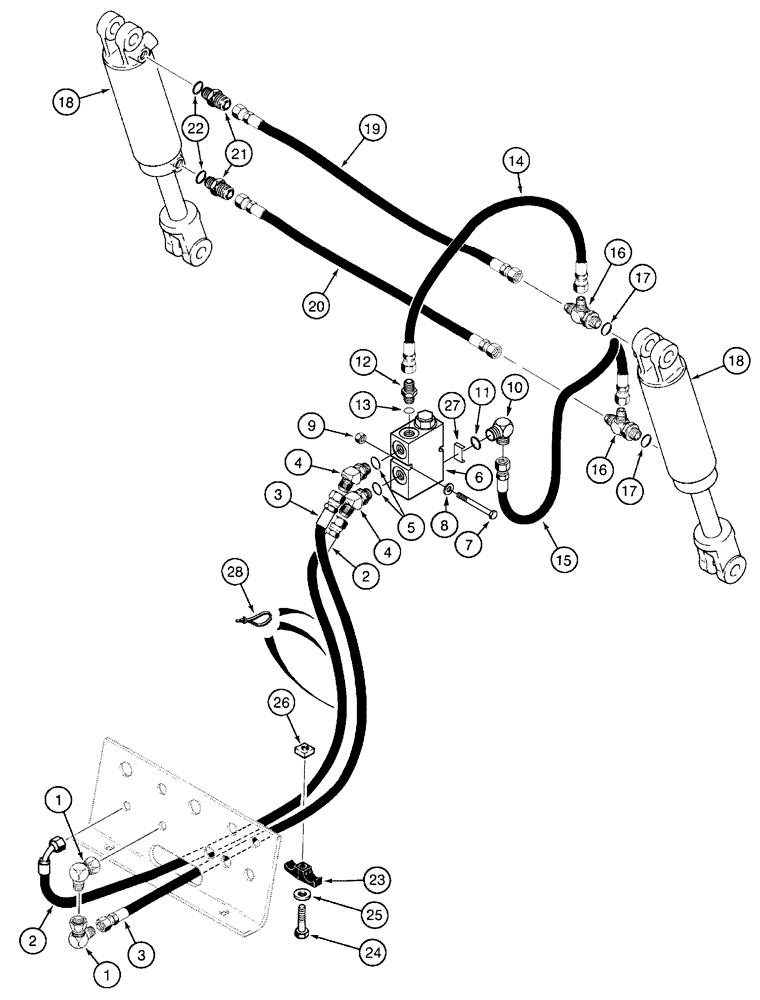

Запчасти Case 960 (08-34) - HYDRAULICS REEL CARRIER (08) - HYDRAULICS

1

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

2шт.

2

104355A1

HOSE

4420 mm (174 in)

1шт.

3

104356A1

HOSE

4420 mm (174 in)

1шт.

4

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 5

2шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

H674608

VALVE

See Page(s) 5-33

1шт.

7

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

1/4 x 3

2шт.

8

H426767

WASHER

2шт.

9

232-4114

LOCK NUT,1/4"-20, GC

2шт.

10

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or, Includes 11

1шт.

12

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 13

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

104354A1

HOSE

381 mm (15 in)

1шт.

15

104353A1

HOSE

345 mm (13-9/16 in)

1шт.

16

218-5581

TEE,9/16"-18, 37 Degree, 3/4"-16, O-Ring Run, 9/16"-18, 37 Degree

Includes 17

2шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

18

101644A1

CYLINDER

76 ID x 203 strk, Reel Carrier Lift, See Page(s) 8-113

2шт.

19

104352A1

HOSE

590 mm (23-1/4 in)

1шт.

20

104351A1

HOSE

622 mm (24-1/2 in)

1шт.

21

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

Includes 22

2шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

23

H438314

CLAMP

1шт.

24

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

25

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

26

224-2206

SQUARE NUT,Sq, 3/8"-16

3/8

1шт.

27

H746875

SCREW

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP , 15 in

3шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
