Запчасти Case 960 (08-33) - CYLINDER ASSY BACKHOE BUCKET (08) - HYDRAULICS

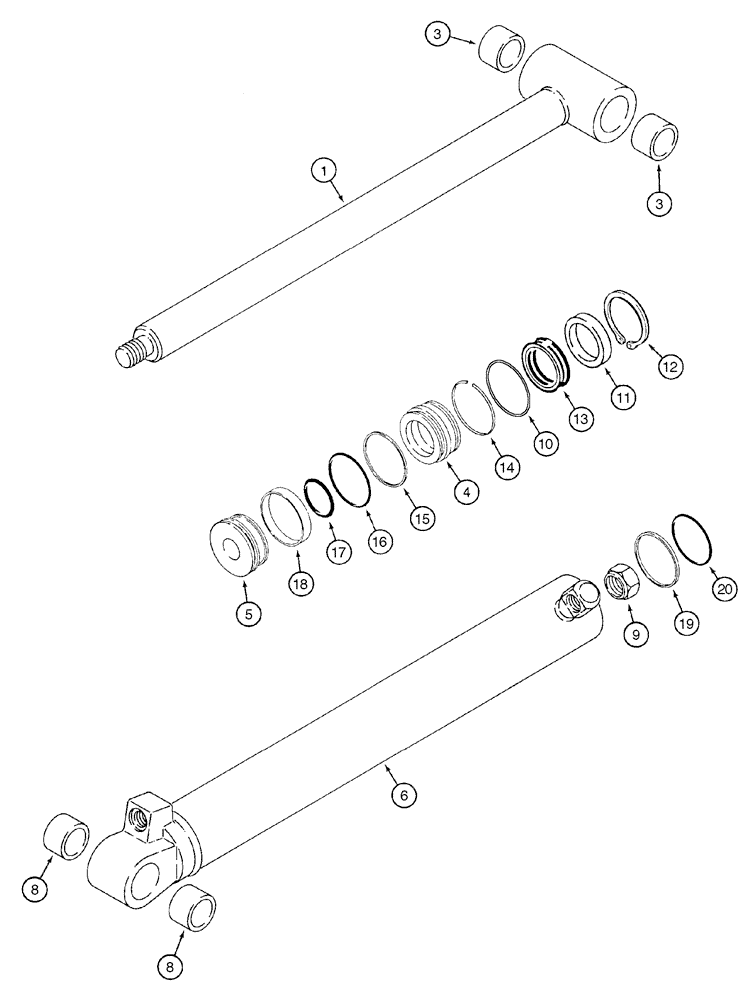

Схема запчастей Case 960 - (08-33) - CYLINDER ASSY BACKHOE BUCKET (08) - HYDRAULICS
8
17
11
3
8
15
4
1
16
5
12
19
13
3
18
14
9
6
10
20

Артикул

Название

Примечание

Количество

H672570

CYLINDER

75 ID x 654 strk, Bucket, Consists Of 1 - 20

1шт.

N13930

JACK PISTON

Piston, Consists Of 1, 3

1шт.

1

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

3

N13921

BUSHING

Piston Rod

2шт.

4

N13928

GLAND

1шт.

5

N13927

PISTON

1шт.

N13929

SLEEVE CYLINDER

Consists Of 6, 8

1шт.

6

NSS

NOT SOLD SEPARAT

Tube, Cylinder

1шт.

8

N13921

BUSHING

Piston Rod

2шт.

9

232-24018

LOCK NUT,1 1/8"-12, GB

1шт.

N13931

SEAL KIT

Seal, Consists Of 10 - 20

1шт.

10

NSS

NOT SOLD SEPARAT

Ring, Lock

1шт.

11

NSS

NOT SOLD SEPARAT

Wiper

1шт.

12

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.

13

NSS

NOT SOLD SEPARAT

Seal

1шт.

14

H52761

RING

1шт.

15

H745760

WASHER

1шт.

16

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

1шт.

17

238-6226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 6, 90 Duro

1шт.

18

H252833

RING

Piston

1шт.

19

H120188

RING

1шт.

20

238-6231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 6, 90 Duro

1шт.

Выбрано товаров: 22
