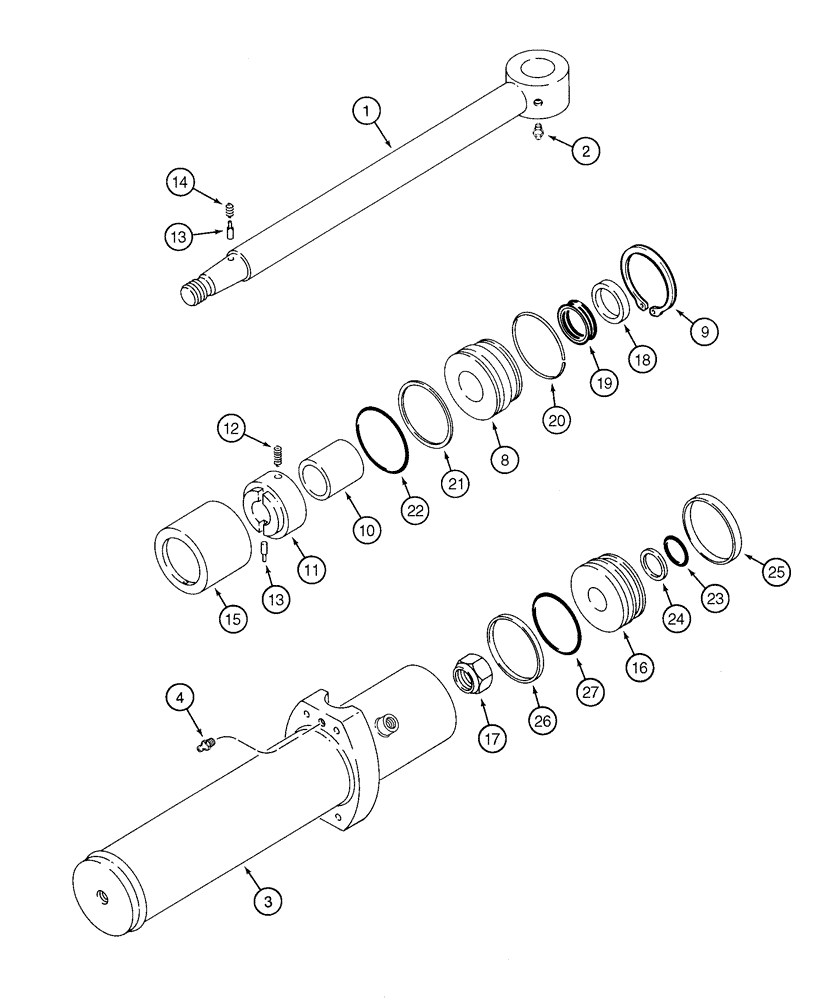

Запчасти Case 960 (08-30) - CYLINDER ASSY BACKHOE SWING (08) - HYDRAULICS

H672571

CYLINDER ASSY.

83 ID x 341 strk, Swing, Consists Of 1 - 27

2шт.

N13909

ROD

Consists Of 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

2

219-17

LUBE NIPPLE,3/16" NPTF

2шт.

N13908

SLEEVE CYLINDER

Cylinder, Consists Of 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Tube, Cylinder

1шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

8

N13907

GLAND

1шт.

9

H746685

RING, SNAP

RING SNAP

1шт.

10

N13913

SPACER

1шт.

11

N13911

RETAINER

1шт.

12

A47976

SPRING

1шт.

13

N13912

PIN

2шт.

14

N13905

SPRING

1шт.

15

N13910

SLEEVE

1шт.

16

N13906

PISTON

1шт.

17

232-24018

LOCK NUT,1 1/8"-12, GB

1шт.

N13914

SEAL KIT

Seal Repair, Consists Of 18 - 27

1шт.

18

A27564

OIL SEAL

Piston Rod

1шт.

19

H220558

SEAL

Rod

1шт.

20

A44708

RING, LOCKING

RING, LOCK

1шт.

21

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

1шт.

22

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

23

238-5217

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

Piston

1шт.

24

NSS

NOT SOLD SEPARAT

Ring, Backup

1шт.

25

NSS

NOT SOLD SEPARAT

Ring, Wear, Piston

1шт.

26

NSS

NOT SOLD SEPARAT

Washer, Backup

1шт.

27

NSS

NOT SOLD SEPARAT

O-Ring, Piston

1шт.
